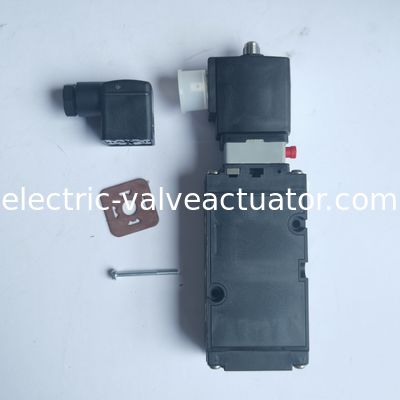

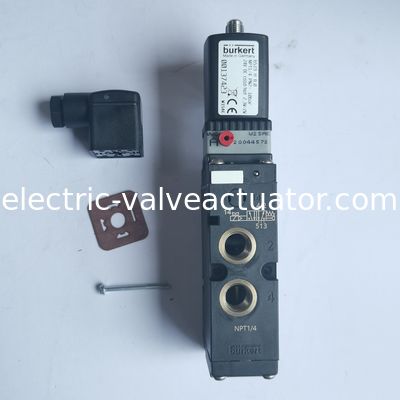

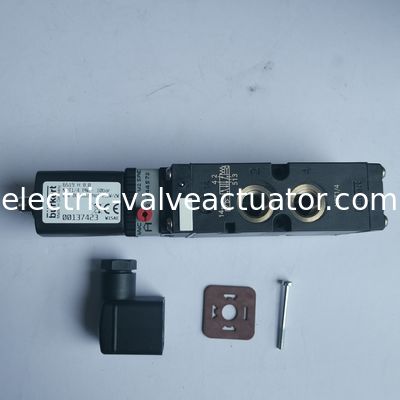

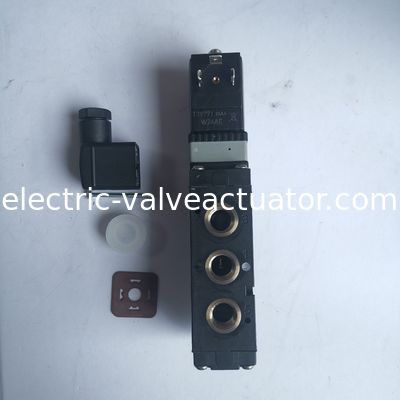

BURKERT Pilot operated Solenoid Valve 6519 Series 137423 6519AK-H08 O-NM82-B5-024/DC-02

Name: BURKERT Pilot operated Solenoid Valve 6519 Series 137423 6519AK-H08 O-NM82-B5-024/DC-02
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 137423
Price: 210.00 USD
Availability: InStock

Brand Name:	BURKERT
Model Number:	137423
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Interface Thread:

NPT 1/4

Current:

24VDC

Cold-state Power Consumption:

2.3 Watts

Normal Power Consumption:

2 Watts

Pressure Range:

2 To 10 Bar

Function And Application:

Industrial

Customization Available:

Yes

Packaging Details:

New original box

Product Description

BURKERT Pilot operated Solenoid Valve 6519 Series 137423 6519AK-H08 O-NM82-B5-024/DC-02

Product Name	Pilot operated solenoid valve
Model	137423
Warranty Period	12 months
Minimum Order Quantity	1 piece

BURKERT Pilot operated Solenoid Valve 6519 Series 137423 6519AK-H08 O-NM82-B5-024/DC-02 0

This solenoid valve can be configured as a 3/2 - way, 5/2 - way, or 5/3 - way valve, providing great flexibility in various pneumatic systems. It is widely used for the pneumatic control of both double - acting and single - acting actuators. The 5/2 - way configuration is ideal for applications where a continuous flow reversal is required for double - acting cylinders, while the 3/2 - way version is suitable for single -

The 6519 Series solenoid valves are available with various approvals, which is especially important for use in hazardous areas. The model 137423 6519AK - H08 O - NM82 - B5 - 024/DC - 02 may come with relevant certifications (depending on the exact configuration) that comply with international safety standards. This makes it suitable for installation in areas where there is a risk of explosion due to the presence of flammable gases, vapors, or dust.

The valve is designed with safety in mind. It operates without continuous air consumption, reducing the risk of air leaks and associated hazards. Additionally, the diaphragm - controlled valve seats work with very low friction, ensuring reliable switching of the valve even after long shutdown periods and at low ambient temperaturesacting cylinders that operate with a spring return mechanism.

In summary, the BURKERT 6519 Series Pilot Operated Solenoid Valve 137423 6519AK - H08 O - NM82 - B5 - 024/DC - 02 is a reliable, efficient, and versatile component that can enhance the performance and safety of industrial pneumatic control systems.
