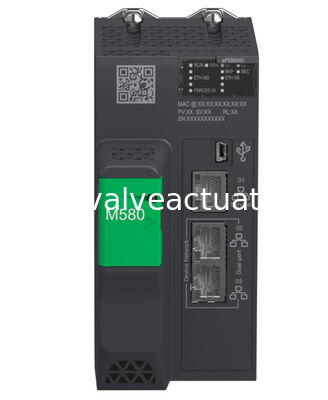

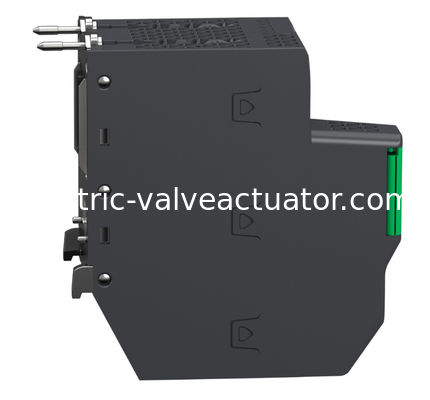

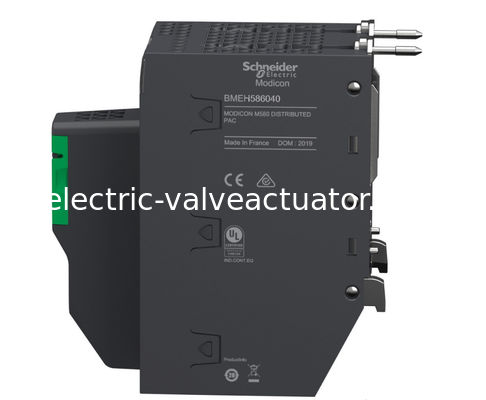

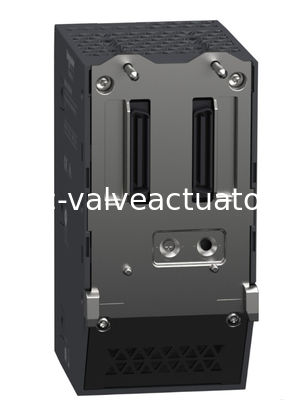

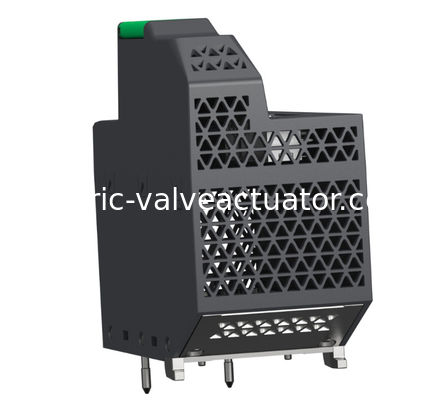

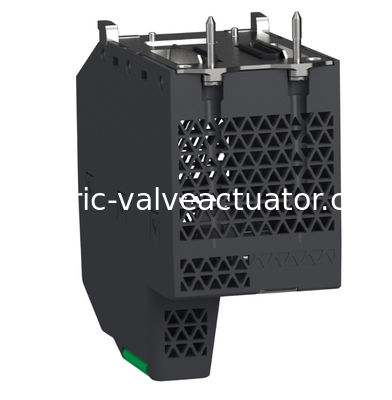

Schneider Electric M580 series BMEP586040 level 60 CPU 64MB supports DIO and RIO

Main

Range of Product

Modicon M580

Product or Component Type

Redundant processor module

Complementary

Number of racks

1

Application specific I/O

HART
SSI encoder
Serial link
Motion control
Accurate time stamping
Counter

Checks

Process control

Control channels

Programmable loops

Integrated connection type

1 Ethernet TCP/IP service port
2 Ethernet TCP/IP device network
USB type mini B
1 Ethernet HSBY port

Number of remote I/O station

16 - 2 X80 and Quantum drops

Number of distributed equipment

64

Communication module processor capacity

8 AS-Interface module
16 Ethernet communication module

Communication Service

RIO scanner
DIO scanner

Memory description

Expandable flash, 4 GB data storage
Integrated RAM, 10 kB system memory
Integrated RAM, 16 MB program
Integrated RAM, 2048 kB data

Application structure

1 cyclic/periodic master task
1 periodic fast task

Cybersecurity

Achilles certified
DoS prevention
IPSec
SNMP logging
Syslog protocol support
Transport layer security
Audit trail
Embedded firewall
Firmware signature
Password protection
Port hardening
Secure communication (HTTPS)
Security log

Number of instructions per ms

30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
40 Kinst/ms 100 % Boolean

Current consumption

360 mA 24 V DC

MTBF reliability

650000 H

Marking

CE

Environment

Vibration resistance

3 gn

Shock resistance

30 gn

Ambient air temperature for operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Operating altitude

0...6561.68 ft (0...2000 m)
2000...5000 m with derating factor

Relative humidity

5…95 % 131 °F (55 °C) without condensation

IP Degree of Protection

IP20

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility

Supply

Internal power supply via rack

Status LED

1 LED (Green) processor running (RUN)
1 LED (Red) processor or system fault (ERR)
1 LED (Red) I/O module fault (I/O)
1 LED (Green) download in progress (DL)
1 LED (Red) memory card or CPU flash fault (BACKUP)
1 LED (green/red) ETH MS (Ethernet port configuration status)
1 LED (green/red) Eth NS (Ethernet network status)
1 LED (Green) peer processor running (REMOTE RUN)
1 LED (Green) processor ID set to A (A)
1 LED (Green) processor ID set to B (B)
1 LED (Green) processor acting as Primary (PRIM)
1 LED (Green) processor acting as Standby (STBY)
1 LED (Green) I/O values overrided by user (FORCED IO)
1 LED (Green) Hot standby link status (Hsby Diag)

Net Weight

1.872 lb(US) (0.849 kg)
