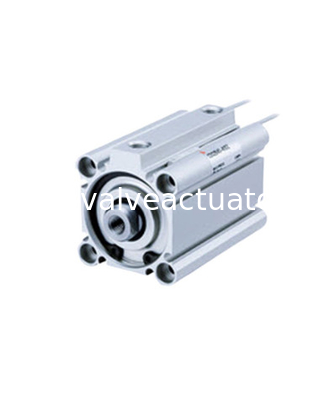

SMC Thin Type Cylinder Model CDQ2D50-30D-X153 Single Bar Double Action

Name: SMC Thin Type Cylinder Model CDQ2D50-30D-X153 Single Bar Double Action
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: CDQ2D50-30D-X153
Price: 210.00 USD
Availability: InStock

Brand Name:	SMC
Model Number:	CDQ2D50-30D-X153

Detail Information

Product Description

Detail Information

Place of Origin:

China

Actuation Mode:

Single Rod, Double Acting

Bore Diameter:

50mm

Stroke:

30mm

Range Of Operating Pressure:

Approximately 0.15 - 0.7MPa

Speed Range:

50 - 500mm/s

Operating Temperature Range:

10℃ - 60℃

Highlight:

SMC Thin type cylinder

CDQ2D50-30D-X153 double action cylinder

Single Bar Thin type cylinder

Product Description

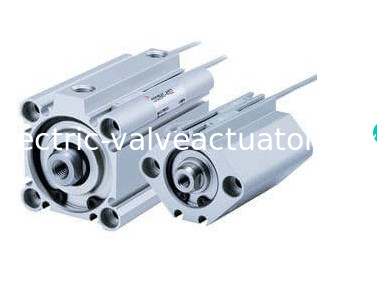

CQ2 Z Series Compact Cylinder: Standard Type/Single Rod Double Acting

Details
● Space-saving cylinder with a slim, compact design
● Can install small magnetic sensors on 4 sides (Φ12 to Φ25 models can install on two sides)
● Magnetic sensors do not protrude from the surface
● New additional dual ring type and small foot bracket type available
● Weight reduced by 5% to 13% compared to the previous CQ2 series
● Mounting screws are bundled, and rod-end mounting components are pre-set (eliminates the time spent ordering the cylinder and brackets separately)
● Available with magnetic sensors (CDQ2 series: CDQ2, CDQ2W, CDQ2)

Product Name	Thin type cylinder
Model number	CDQ2D50-30D-X153
Quality	100% brand new original
Warranty	12 months
Package	1 piece
