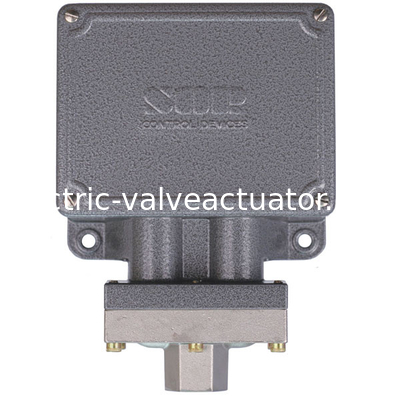

103 AD- EF 212 - N5 -C1A- YY 102/103 Differential Pressure Switches
SOR Pressure Switches
The SOR pressure switches in this catalog are suitable for a variety of process applications.
The 102 is suited for low-to-high differential pressure process or fluid power applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates are expected. The 103 is suited for low-tomedium differential pressure process or fluid power applications where similar system behavior is expected.
| psid (in. wc)
|
|
| Model Number
|
|
| 103W1 - K212 - N4 - C1A | (7 to 100)
|
| 103W1 - K502 - N4 - C1A | (20 to 150)
|
| 103W1 - K805 - N4 - C1A | (100 to 1000)
|
| 102W1 - K912 - P1-C1A | 5 to 25
|
| 102W1 - K903 - P1 - C1A | 8 to 40
|
| 102W1 - K905 - P1 - C1A | 10 to 60
|
| 102W1 - K603 - P1 - C1A | 20 to 100
|
| 102W1 - K403 - P1 - C1A | 40 to 200
|
| 102W1 - K405 - P1 - C1A | 50 to 300
|
| 102W1- K305 - P1 - C1A | 100 to 500
|
| 102W1 - K105 - P1 - C1A | 500 to 2500 |
| Standard Construction
|
||
| Housing | W1 (weatherproof) | Aluminum
|
| AD (explosion proof) | 316SS
|
|
| Switching Element | K | SPDT 15A @ 250 VAC
|
| EF | SPDT 5A @ 250 VAC
|
|
| Diaphragm | N4 103-212 | Teflon-Coated Polyimide
|
| 103-502 | Kapton Polyimide Film
|
|
| 103-805 | Kapton Polyimide Film
|
|
| O-Ring | P1 | Buna-N
|
| Pressure Port | C1A | 1/4” NPT(F); 316SS |
Engineered to Order Model Tree
