End Cover Material: | Stainsteel , PVC , PP | Liquid Flow Direction: | From Inside Out |
---|---|---|---|
Filtering Accuracy: | 1μm~100μm | Filter Medium: | Lubricating Oil, Turbine Oil, Gear Oil, Hydraulic Oil, Transformer Oil |
Operating Temperature: | -40°C To 85°C | Applicable Scope: | Filter |
Structural Style: | End Caps, Filter Media, And Tube Cores | Type: | Folding Microporous Filter |
High Light: | cartridge Return Oil Filter element,Hydraulic Oil Return Filter Cartridge,HBX-250×10 Return Oil Filter Element |

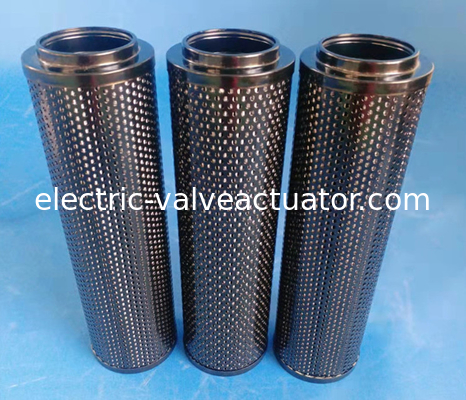

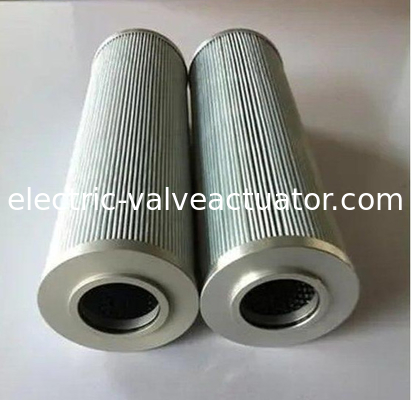

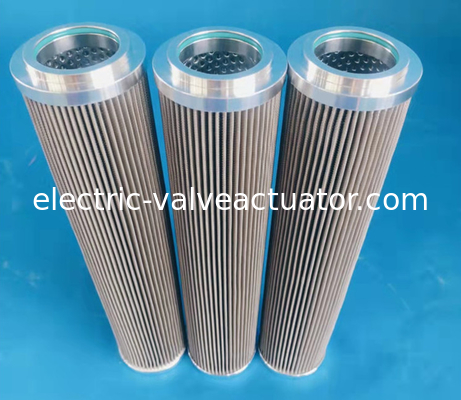

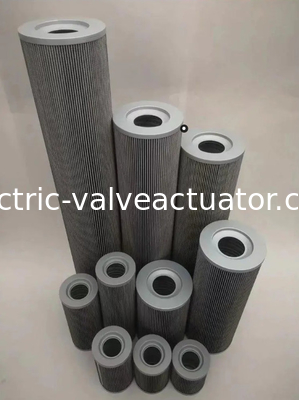

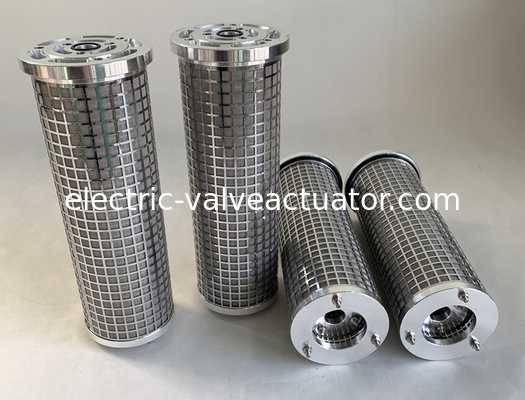

The HBX-250 × 10 oil return filter element is an oil filter element installed in the plate connected ZU, QU, WU and other series of pressure pipeline filters. It is used to filter out mechanical impurities mixed in hydraulic oil and gum, asphalt, carbon residue, etc. generated by the chemical changes of hydraulic oil itself, thereby ensuring the normal operation of the hydraulic system. The HBX-40 × 40 hydraulic oil filter element is made of filtering materials such as glass fiber and metal mesh, which have the advantages of high filtration accuracy, strong oil flow capacity, small original pressure loss, and large pollutant absorption. Its filtration accuracy is calibrated with absolute filtration accuracy, and the filtration ratio is β 3. 5, 10, 20>200, filtration efficiency greater than or equal to 99.5%, in compliance with ISO standards.
Test 1: ISO2941 ·· Verification of the anti rupture performance of filter cartridges
Test 2: ISO2942 ·· Determination of structural integrity of filter cartridges
Test Three: ISO2943 ·· Determination of Compatibility between Filter Element Materials and Liquids
Test 4: ISO3723 ·· End load test method for filter cartridges
Test 5: ISO3724 ·· Determination of fatigue characteristics of filter cartridges
Test 6: ISO3968 ·· Determination of differential pressure flow characteristics of filter cartridges
Test 7: ISO4572 ·· Filter Element Determination of Filtration Characteristics by Multiple Pass Method
TZX2-63 filter element HDX-10 * 10 oil filter element FBX-250X20 return oil filter element
