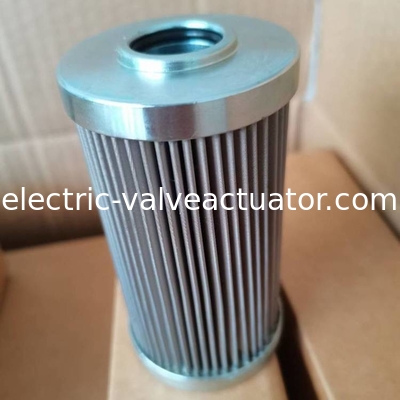

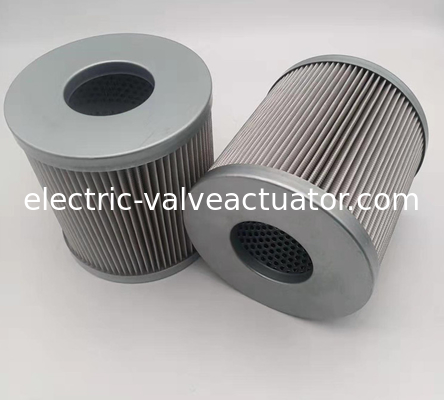

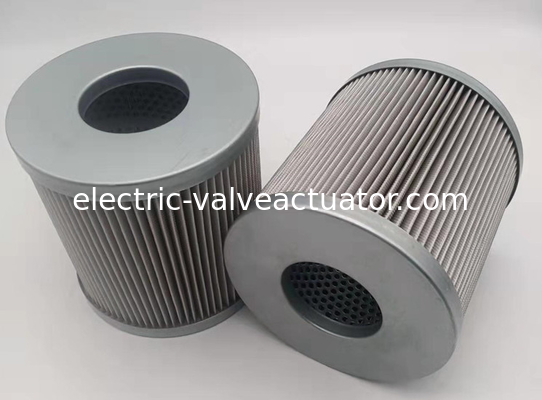

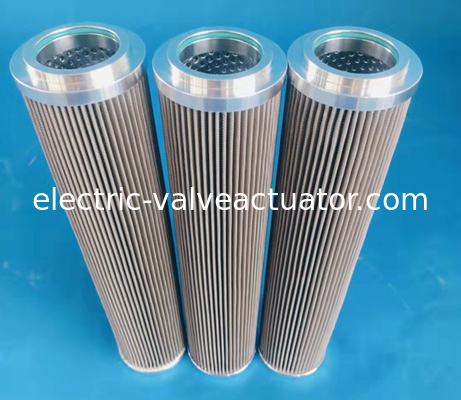

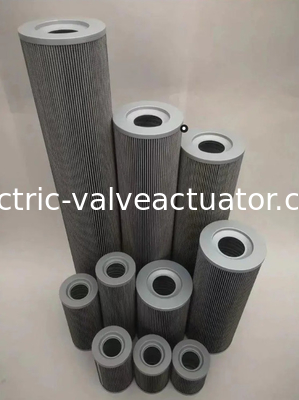

High Pressure Filter Element HX-250X20 HX-250X30 HX-250X40 Hydraulic Oil Filter HX-250*10

Product Description:

The high-pressure filter element HX-250 is installed on the pressure pipeline of the hydraulic system. The filter is used to filter out mechanical impurities mixed in the hydraulic oil and gum, asphalt, carbon residue, etc. generated by the chemical changes of the hydraulic oil itself, thereby preventing valve core jamming, blockage of throttle hole gaps and damping holes, and rapid wear of hydraulic components.

Features:

• High pressure filter element HX-250 testing standard:
  Test 1: ISO2941 ·· Verification of the anti rupture performance of filter cartridges
  Test 2: ISO2942 ·· Determination of structural integrity of filter cartridges
  Test Three: ISO2943 ·· Determination of Compatibility between Filter Element Materials and Liquids
  Test 4: ISO3723 ·· End load test method for filter cartridges
  Test 5: ISO3724 ·· Determination of fatigue characteristics of filter cartridges
  Test 6: ISO3968 ·· Determination of differential pressure flow characteristics of filter cartridges
  Test 7: ISO4572 ·· Filter Element Determination of Filtration Characteristics by Multiple Pass Method

Oil water separation filter cartridge, power plant hydraulic coupling filter cartridge, first stage regeneration filter cartridge 01-361-023

Technical Parameters:

1. Filter element material: fiberglass
2. Working flow rate: 10L/min --800L/min
3. Filtering accuracy: 10 microns, 20 microns, 30 microns, and 40 microns
4. nominal pressure: 32Mpa

1. The filter element is made of imported fiberglass, which has the advantages of convenient drainage, large flow area, small pressure loss, simple structure, small volume, light weight, and uniform filtering material.
2. The compatibility of the filter material is applicable to the filtration of general hydraulic oil.
3. The filter element is supported by solid filter materials on both sides and filter materials with strong stability, which comply with the verification of flow fatigue characteristics of ISO3724/76 hydraulic filter elements.

Applications:

1. Metallurgy: used for filtering hydraulic systems of rolling mills and continuous casting machines, as well as filtering various lubrication equipment.
2. Petrochemical: separation and recovery of products and intermediate products in refining and chemical production processes, purification of liquids, purification of magnetic tapes, optical discs, and photographic films in manufacturing, and filtration of oilfield injection water and natural gas particles.
3. Textile: Purification and uniform filtration of polyester melt during drawing process, protective filtration of air compressor, and oil and water removal of compressed gas.
4. Electronics and pharmaceuticals: pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of detergent and glucose.
5. Thermal power and nuclear power: purification of oil in lubrication systems, speed control systems, bypass control systems of gas turbines and boilers, purification of feedwater pumps, fans, and dust removal systems.
6. Various lifting and handling operations: from construction machinery such as lifting and loading to special vehicles for firefighting, maintenance, and handling, ship's cargo and anchor cranes, blast furnace and steelmaking equipment, ship locks, opening and closing devices for ship doors, lifting orchards and stages in theaters, various automatic conveyor lines, etc.
7. Various operational devices that require force, such as hydraulic presses, metal material die-casting, forming, rolling, rolling, stretching, and shearing equipment, plastic injection molding machines, plastic extruders and other chemical machinery, tractors, harvesters, and other agricultural and forestry machinery used for logging and mining, excavation equipment for tunnels, mines, and ground, steering gear for various ships, etc.
8. High response and high-precision control: devices for tracking and driving artillery, stabilizing turrets, eliminating ship sway, attitude control of aircraft and missiles, high-precision positioning systems for machining machines, driving and control of industrial robots, thickness control of metal sheet pressing and leather slicing, speed control of power plant generators, high-performance vibration tables and testing machines, multi degree of freedom large-scale motion simulators and entertainment facilities, etc.
