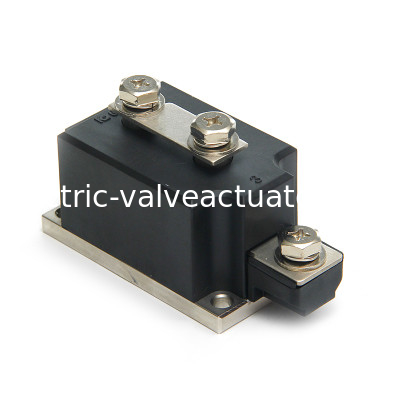

Single Phase Thyristor Module MTC200-500 SCR Module MTC500A-1600V

Single Phase Thyristor Module MTC200-500 SCR Module MTC500A-1600V

  • Single Phase Thyristor Module MTC200-500 SCR Module MTC500A-1600V
  • Single Phase Thyristor Module MTC200-500 SCR Module MTC500A-1600V
Single Phase Thyristor Module MTC200-500 SCR Module MTC500A-1600V
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: MTC500A-1600V
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000 sets
Contact Now
Detailed Product Description
Model: MTC500A-1600V Voltage: 1600V
Current: 500A Control Method: Single Phase
Net Weight: 1.44kg Packing Size: 140*68*68
High Light:

500A Thyristor module

,

1600V Thyristor module

,

Single Phase scr module



Thyristor Module MTC200-500 Power Electronics Semiconductor MTC500A-1600V





Thyristor module MTC500-16 SCR module

Chip and backplane electrical insulation, excellent temperature characteristics and power cycling capability, small size and light weight.

Applications:AC and DC motor control,Various rectifier power,Industrial heating control,Dimming,Non-contact switch, motor soft start, static var compensator, welding machines, inverter, UPS, battery charge and discharge.



characteristic:



■ Production workshop Ten thousand level dust-free workshop



■ Full crimping structure, excellent temperature characteristics and power circulation capability



■ Fully automatic vacuum silicon gel and epoxy double dispenser glue filling



■ Modules below 350A are forced air cooling, while modules above 500A can be either air cooling or water cooling



■ Chip and backplane electrical insulation AC voltage 2500VAC



■ High heat conductive packaging





model Output current resistance load Output current inductive load Heat sink With heat sink 3pcs group
MTC25A 20A 13A 100x80x50 120x125x135 with fan
MTC55A 44A 28A 100x80x50 120x125x135 with fan
MTC70A 56A 35A 115x100x80 120x125x135 with fan
MTC90A 72A 45A 115x100x80 120x125x135 with fan
MTC110A 88A 55A 150x100x80 150x125x135 with fan
MTC130A 104A 65A 150x100x80 150x125x135 with fan
MTC160A 128A 80A 150x100x80with fan 200x125x135 with fan
MTC200A small 150A 100A 150x100x80with fan 300x125x135 with fan
MTC200A 150A 100A 150x100x80with fan 300x125x135 with fan
MTC250A 200A 125A 150x125x135with fan 360x125x135 with fan
MTC300A 240A 150A 150x125x135with fan 390x125x135with fan
MTC400A 320A 200A 200x125x135with fan 450x141x135with fan
MTC500A 400A 250A 200x125x135with fan 450x141x135with fan
MTC600A 480A 300A 250x125x135with fan NO
MTC800A 640A 400A 250x125x135with fan NO
MTC1000A 800A 500A 250x125x135with fan NO
MTC1500A 1200A 750A 300x125x135with fan NO
MTC2000A 1400A 1000A 400x141x135with fan NO
