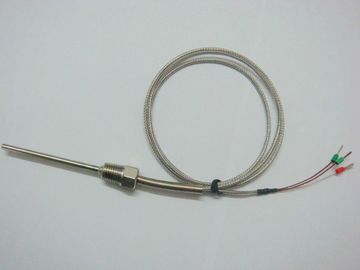

SS 316 - (Wst 1.4401) Sheathed Pt100 Thermometer with Compensating Cable

SS 316 - (Wst 1.4401) Sheathed Pt100 Thermometer with Compensating Cable

Brand Name: OEM
Model Number: WRET-01
MOQ: 5
Price: contact
Payment Terms: T/T
Supply Ability: 500PCS / month
Detail Information
Place of Origin:
China
Packaging Details:
Carton box
Supply Ability:
500PCS / month
Highlight:

s type thermocouples

,

high temperature thermocouple

Product Description

SS 316 - (Wst 1.4401) Sheathed Pt100 Thermometer with Compensating Cable



1.Pt100 Thermal Resistance
2.Probe diameter 3 mm
3.length:50mm
4.Heraeus thin film elment
5.SS braid Cable

I.Miniature Thermal Resistance

II.Sheath:



Construction

Closed-end tube

Material

SS 316 - (Wst 1.4401)

Diameter

3 mm

Length

50 mm



Lead Wire

 insulated
flexible copper wire,  armoured
with  outer
jacket 240 °C



Sensor

Accuracy

According IEC 751
class B

Connection

3 wire system ( Optional 4 wire system )

Range

-200 / + 240 °C



pt100, temperature sensor with plain tube, Pt100 sensor


1. temperature range: -200 C to +420 C
2. terminal with plug , easy to use with thermometer
3. diameter 4 mm / 5 mm / 6mm , probe length can be 20mm to 1000 mm , length of wire 10mm to   10000mm .
4.Probe is protected by ptfe tube.
So it can applied in corrosion and water environment.
5.application to test the temperature of hole
