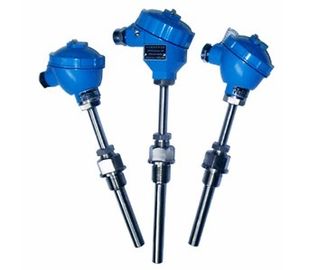

WZPK-103 104 105 106 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple

WZPK-103 104 105 106 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple

Brand Name: OEM
Model Number: WRET-01
MOQ: 5
Price: contact
Payment Terms: T/T
Supply Ability: 600PCS / month
Detail Information
Place of Origin:
China
Packaging Details:
Carton box
Supply Ability:
600PCS / month
Highlight:

s type thermocouples

,

temperature measurement thermocouple

Product Description

WZPK-103 104 105 106 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple



WZPK-103 104 105 106 108 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-203 204 205 206 208 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-303 304 305 306 308 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-403 404 405 406 408 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-503 504 505 506 508 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD

WZPK-123 133 124 134 125 135 126 136 128 138 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-223 233 224 234 225 235 226 236 228 238 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-323 333 324 334 325 335 326 336 328 338 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-423 433 424 434 425 435 426 436 428 438 Armored Thermal Resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD
WZPK-143 144 145 146 148 243 244 245 246 248 243 244 245 246 248 Explosion-proof armor thermal resistance, Platinum RTD, PT100 sheathed thermocouple, PT100 RTD

Armor thermal resistance, thermal resistance of armored, platinum RTD, PT100 thermocouples, PT100 thermal resistance, explosion-proof armor thermal resistance, temperature sensors, temperature probes

Armored Thermal Resistance Model Description

W Z □ K - □ □ □

a  b  c  d    e   f   g

a.  Temperature control instruments

b.  Thermal Resistance

c.  Platinum RTD

d.  Armored

e.  Mounting form

     1.  No fixed unit-type

     2.  Fixed screw-type sleeve

     3.  Screw type movable sleeve

     4.  Fixed sleeve flange

     5.  Movable sleeve flange

f.   Junction box in the form

     0.  Simple style

     2.  Splash-type terminal block

     3.  Waterproof junction box type

g.  Protection tube diameter

     3.  Φ3mm

     4.  Φ4mm

     5.  Φ5mm

     6.  Φ6mm

     8.  Φ8mm
