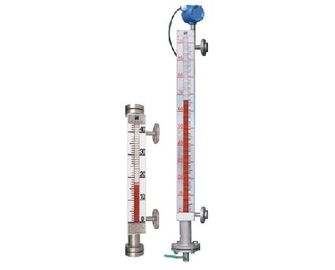

UFZ-52 Magnetic Turning Panel Liquid Level Meters, Magnetic Level Gauges with transmitter

 UFZ-52 Magnetic Turning Panel Liquid Level Meters, Magnetic Level Gauges with transmitter

  (1) Center distance: L=500~600mm choose randomly
  (2) Error in indication :±10mm
  (3) Working pressure:1.6,2.5, 4.0, 6.3,10.0MPa
  (4) Medium temperature: -80~300℃
  (5) Medium density:  ≥0.45g/cm3
  (6) Medium viscosity:  ≤ 1St(10-4m2/s)
  (7) Meet liquid material: 1Cr18Ni9Ti.304.316.Ti
  (8) Flange:  the diameter of flange DN20
       Flange Standard:  PN1.6: HG20592~20635-97;
                                  PN2.5, 4.0: HG20592~20635-97-raised face
                                  PN6.3, 10.0: HG20592~20635-97-raised  face
  (9) Installation: side

2. Alarm

  (1) Alarm error: ±5mm

  (2) Output form: common signal

  (3) Contact capacity: 24V.DC, 0.3A

  (4) Working life: >105

  (5) Outlet: M20*1.5(inside thread)

  (6) Transmission range: 3km

  (7) Ambient temperature: -40~60℃

  (8)Hazard classification: flameproof,  dIIBT-4,  No. of the certification: GYB95340

  (9) Protection classification outside: IP65

  (10)Weight: 0.5kg

3. Transmitter

  (1) Measuring range: 0~6000mm

  (2) Error: ±10mm

  (3) Output signal: 4~20mA.DC

  (4) Load impedance: 550Ω(when the power supply is 24V.DC)

  (5) Power supply voltage: 24V.DC

  (6) Outlet: M20*1.5(inside thread)

  (7) Ambient temperature:  -40~60℃

  (8) Hazard classification: dIIbt1-4,  ibIIBT4

  (9) Protection classification outside: IP65
