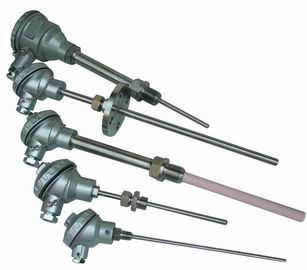

WZP-320 330 321 330 Flanges fabricated thermal resistance, platinum thermocouples, PT100 R

WZP-320 330 321 330 Flanges fabricated thermal resistance, platinum thermocouples, PT100 R

Brand Name: OEM
Model Number: WZ Series
MOQ: 5
Price: contact
Payment Terms: T/T
Supply Ability: 1000PCS / month
Detail Information
Place of Origin:
China
Packaging Details:
Carton box
Supply Ability:
1000PCS / month
Highlight:

s type thermocouples

,

high temperature thermocouple

Product Description





WZP-120 130 121 131 No fixed assembly thermal resistance, platinum thermocouples, PT100 RTD

WZC-120 130 121 131 No fixed assembly thermal resistance, Copper thermal resistance, CU50 thermal resistance

WZP-220 230 221 231 Screw assembly thermal resistance, platinum thermocouples, PT100 RTD

WZC-220 230 221 231 Screw assembly thermal resistance, Copper thermal resistance, CU50 thermal resistance

WZP-320 330 321 330 Flanges fabricated thermal resistance, platinum thermocouples, PT100 RTD

WZC-320 330 321 330 Flanges fabricated thermal resistance, Copper thermal resistance, CU50 thermal resistance

WZP-420 430 421 431 Mounting flange assembly thermal resistance, platinum thermocouples, PT100 RTD

WZC-420 430 421 431 Mounting flange assembly thermal resistance, Copper thermal resistance, CU50 thermal resistance

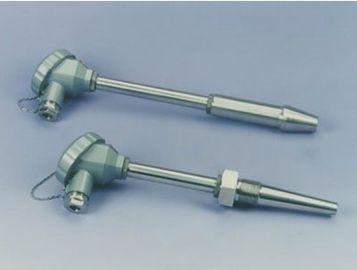

WZP-620 630 621 631 Thermal resistance of the fixed cone assembly, platinum thermocouples, PT100 RTD

WZC-620 630 621 631 Thermal resistance of the fixed cone assembly, Copper thermal resistance, CU50 thermal resistance

WZP-140 141 240 241 440 441 Explosion-proof thermal resistance, platinum thermocouples, PT100 RTD

WZP-269 Platinum RTD, PT100 RTD

WZC-269 Copper thermal resistance, CU50 thermal resistance

WZP-270 Platinum RTD, PT100 RTDWZC-270 Copper thermal resistance, CU50 thermal resistance

WZP-280 Small thermal resistance junction, Platinum RTD, PT100 RTD

WZC-280 Small thermal resistance junction, Copper thermal resistance, CU50 thermal resistance

WZP-267 Platinum RTD, PT100 RTDWZC-267 Copper thermal resistance, CU50 thermal resistance

WZP-200 Platinum RTD, PT100 RTDWZC-200 Copper thermal resistance, CU50 thermal resistance

WZP-260 Platinum RTD, PT100 RTDWZC-260 Copper thermal resistance, CU50 thermal resistance



Fabricated RTD, fabricated thermal resistance, platinum RTD, platinum thermal resistance, PT100 thermal resistance, PT100 RTD, thermal resistance of copper, CU50 thermal resistance, junction box of small thermal resistance, thermal resistance elements, temperature sensors



Thermal resistance Model Description

W  Z  □ □ -□ □ □

a    b   c    d       e    f    g

a.     Temperature Instrumentation

b.     Thermal resistance

c.      Thermal resistance Instrumentation

        P:  Platinum RTD

        C:  Copper thermal resistance

d.     2: Two-core Thermal resistance

e.     Mounting form:

       1:  No fixtures

       2:  Fixed thread

       3:  Activities flange

       4:  Fixed flange

       6:  Screw protection tube cone

f.      Junction box in the form:

       1:  No junction box

       2:  Splash type

       3:  Waterproof type

       4:  Explosion-proof type

       Other forms of unified design

       Other outlets in the form

g.     Design No:

       0:  Φ16mm Stainless steel protection tube

       1:  Φ12mm Stainless steel protection tube

       Other specifications
