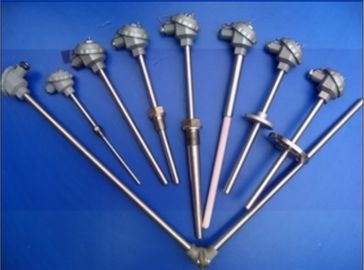

WRN / WRE series No fixtures thermocouple, Assembly Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRNM-101A

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	contact
Packaging Details:	Carton box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	1000PCS / month

Contact Now

Detailed Product Description

High Light:

s type thermocouples

high temperature thermocouple

WRN / WRE series No fixtures thermocouple, Assembly Thermocouple

WRN / WRE series No fixtures thermocouple, Assembly Thermocouple, Temperature Sensor, K type thermocouple, E type thermocouple

Name	Model	Installation	No indexing	Protection tube material	Diameter	Temperature range
Ni-Cr - Ni-Si Thermocouple	WRN-120	No fixtures	K(EU-2)	1Cr18Ni9Ti	Φ16mm	0～1100℃
	-130
	WRN-121				Φ20mm
	-131
	WRN-122			High alumina protection tube	Φ16mm	0～1300℃
	WRN-123				Φ20mm
Ni-Cr – constantan Thermocouple	WRE-120		E(EU-2)	1Cr18Ni9Ti	Φ16mm	0～900℃
	-130
	WRE-121				Φ20mm
	-131
	WRE-122			High alumina protection tube	Φ16mm
	-123				Φ20mm

WRP-120 130 121 131 320 330 321 331 Platinum Rhodium 10 - Platinum Thermocouple, S-type thermocouple

WRR-120 130 121 131 320 330 321 331 Platinum Rhodium 30 - Platinum Thermocouple 6, B-type thermocouple

WRN-120 130 121 131 122 123 No fixed assembly thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple

WRE-120 130 121 131 122 123 No fixed thermocouple assembly, E-type thermocouple, NiCr - constantan thermocouple

WRN-220 230 221 231 Thermocouple assembly screws, K type thermocouple, nickel chromium - nickel silicon thermocouple

WRE-220 230 221 231 Thermocouple assembly screws, E-type thermocouple, NiCr - constantan thermocouple

WRN-320 330 321 331 Flanges fabricated thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple

WRE-320 330 321 331 Flanges fabricated thermocouple, E-type thermocouple, NiCr - constantan thermocouple

WRN-420 430 421 431 Mounting flange assembly type thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple

WRE-420 430 421 431 Mounting flange assembly type thermocouple, E-type thermocouple, NiCr - constantan thermocouple

WRN-520 530 Right angle thermocouple assembly, K type thermocouple, nickel chromium - nickel silicon thermocouple

WRN-620 630 Thermocouple fixed threaded cone assembly, K type thermocouple, nickel chromium - nickel silicon thermocouple

WRE-620 630 Thermocouple fixed threaded cone assembly, E-type thermocouple, NiCr - constantan thermocouple

WRN-140 141 240 241 440 441 Explosion-proof Thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple

Thermocouple assembly, nickel chromium - nickel silicon thermocouples, nickel chromium - constantan thermocouple, K type thermocouple, E-type thermocouple, S-type thermocouple, B-type thermocouple, explosion-proof Thermocouples, flameproof thermocouple

Thermocouple Model Description

W R □ □ -□ □ □

a b c d e f g

a. Temperature Instrumentation

b. Thermocouple

c. Temperature Instrumentation

R: Platinum Rhodium 10 - Platinum Rhodium 6

P: Platinum Rhodium 10 - Platinum

N: Ni-Cr - Ni-Si

E: Ni-Cr – constantan

d. 2: Two-core thermocouple

e. Mounting form:
