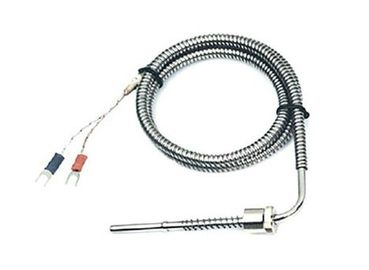

WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple

WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple

  • WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple
WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: WRET -01
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: contact
Packaging Details: Carton box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000PCS / month
Contact Now
Detailed Product Description
High Light:

s type thermocouples

,

temperature measurement thermocouple


WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple



Specifications and parameters:

Model

Indexing NO.

Measure range ℃

Thermal response time t0.5

Protection tube material

WRET-01

E(EA-2)

0~400

<5

1Cr18Ni9Ti

stainless steel

specifications

connecting bolt L2mm

Total length Lmm

Protection tube L1mm

1000

1500

2000

2500

3000

3500

4000

30

30

30

30

30

30

30















35 or 70

1000

1500

2000

2500

3000

3500

4000

60

60

60

60

60

60

60



Descrition:

WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple thermocouple by the pressure spring will end and the measured object surface close to the,to improve the measurement accuracy and reliability.It and display instrument used for the matching, can be directly measured at 0 to 400 DEG C within the scope of temperature.Thermocouple extension wire with a soft, can be freely bent, with the thermal response time of small, use convenient wait for a characteristic, applied to the plastic machine, textile, food and other industries Structure principle


WRET-01 Type thermocouple principle, indexing characteristics and tolerances, the reference terminal (cold junction temperature compensation, as well as) and display instrument with the same general thermocouple connecting method.
WRET-01 type thermocouple structure as shown in the figure, the protection tube, the mounting bolt, locking sleeve, spring and heat resistance wire.
