High accuracy UNI900B Weigh Feeder Belt Scale Controller 32 bit, AC 180V ~ 265V

High accuracy UNI900B Weigh Feeder Belt Scale Controller 32 bit,   AC 180V ~ 265V

CE, EMC Approval

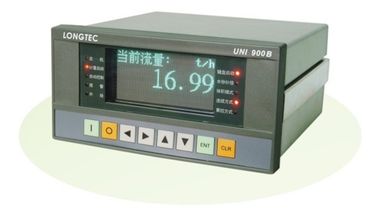

The UNI900B controller is specially designed for the belt scale, which is of high accuracy, high reliability, and high performance. It adopts 32-bit ARM chip as its CPU, and chooses industrial components and bonding process production, with various kinds of anti-jamming measures. High-Voltage Pulse test, high voltage with gas gap discharging test, high voltage with contact discharging test, and high and low temperature test are adopted. It is of high reliability, of advanced control algorithm, easy to be operated, of strong adaptive ability and provides various kinds of extended modules.

Specifications

◆ Power supply                                  : AC 180V~265V,  50/60Hz
◆ Working temperature                     : -5℃~65℃ (23℉~137℉)
◆ Load cell type                                  : all kinds of strain gauge load cells
◆ Adjustable zero voltage range     : 0.3mV~15.0mV
◆ Temp. Coefficient                           : ≤(0.0008% of reading +0.3 division)/℃
◆ Sample rate                                    : Max. 200times/s
◆ Power consumption                      : ≈15 W
◆ Pulse signal input range              : 5Hz~4KHz
◆ Output sensitivity                            : 0.3μV /d~0.3mV /d
◆ Valid input voltage range              : 0.3mV~30.0mV
◆ Sampling method                          : Delta-sigma
◆ Non-linear deviation                      : ≤0.005% of F.S

Fit for belt (screw) measuring scale,  belt (screw) batching scale
