Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: XDZ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Payment Terms: T/T
Supply Ability: 500
Contact Now
Detailed Product Description
High Light:

Spark Plug Wire

,

high energy ignition device

Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 1400V



Standard type soft rod explosion proof high energy igniting gun XDZ-1R-l/d B  600 ~ 1400V High energy ignition device



1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.



2,Technical advantages and honor- Low ignition voltage;- Good temperature resistance;- Safety and reliability, strong ability to resist pollution.


Applications:


    As XDH high-energy ignition device assembly.



Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage;
- Good temperature resistance;
- Safety and reliability,  strong ability to resist pollution

3,Applications:

As XDH high-energy ignition device assembly.





Product model and series

1. Product series

Sr.

Model

Description

1

XDZ-1-l/d

Standard type hard rod high energy ignition gun

2

XDZ-1-l/d B

Standard type hard rod explosion-proof high-energy igniting gun

3

XDZ-1-l/d K

Standard type hard gun handle high energy ignition gun

4

XDZ-1R-l/d

Standard type soft rod high energy ignition gun

5

XDZ-1R-l/d B

Standard type soft rod explosion-proof high-energy igniting gun

6

XDZ-2-l/d

Non standard hard rod high energy ignition gun

7

XDZ-2-l/d B

Non standard hard rod explosion-proof high-energy igniting gun

8

XDZ-2R-l/d

Non standard soft rod high energy ignition gun

9

XDZ-2R-l/d B

Non standard soft rod explosion-proof high-energy igniting gun

10

XDZ-3-l/d

Special electric nozzle high-energy igniting gun

11

XDZ-3-l/d B

Explosion proof special electric nozzle high-energy igniting gun

12

XDZ-4-l/d B

The hard rod high clearance point guns

【Note 】
①In the table type codelis igniting gun length, in order to unit mm;
②In the table d is igniting gun diameter ,there are 14mm,16mm,18mm series to choose;
③ according user demanding to special design and produce.


1. basic configuration:(leave)

2. Performance parameters

Various types of ignition performance parameters:

Parameter name

Unit

Data

Starting ignition voltage

VDC

600~1400

center electrode resistance

Ω

≤0.1

firing end long-term temperature

≤800

firing end short-time (<5min) temperature resistance

1250




3. Outline and mounting dimensions




Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 0

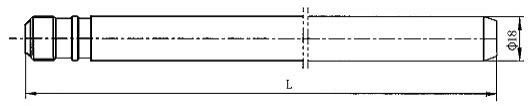

Drawing 3-1,XDZ-1- l/18 Standard type hard rod high energy ignition gun(L≤1000mm)



Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 1
Drawing 3-2,XDZ-1-l/18 Standard type hard rod high energy ignition gun(L>1000mm)


Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 2

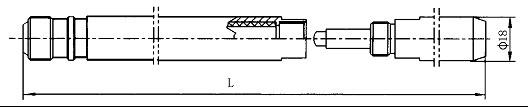

Drawing 3-3,XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun



Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 3

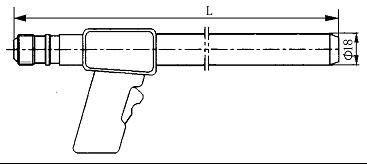

Drawing 3-4,XDZ-1- l/18 K Standard type hard gun handle high energy ignition gun



Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 4

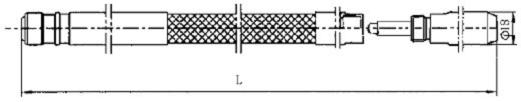

Drawing 3-5,XDZ-1R-l/18 Standard type soft rod high energy ignition gun



Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 5

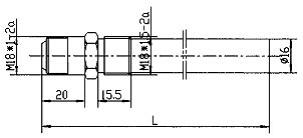

3-6,XDZ-3 Catalytic plug ignition gun



Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l / d B 600 ~ 14 6
Drawing 3-7,XDZ-4-l/d hard rod high pressure gap ignition gun
