| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | DS/Z44H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | Within 15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs / month |
| High Light: | power plant valves,gate globe valve |
||
|---|---|---|---|

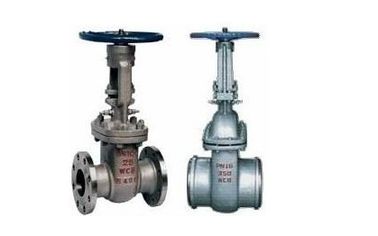

GB9113 DS / Z44H cast steel, cast iron gate valve seal GB1.6Mpa, GB4.0Mpa, GB6.4Mpa
Name : DS/Z44H cast steel gate valve seal
Model: DS/Z44H
Caliber: 50～600mm
Pressure: 1.6MPa～10.0MPa
Material: cast steel, cast iron, stainless steel
Design and manufacturing standards:
Design and manufacture:GB12234
Flange Size:GB9113 JB79
Pressure and temperature:JB/T74 GB9131
Structure Length:GB/T12221
Butt weld size:---
Inspection and test:JB/T9092 GB12224
Installation dimensions and weight:
|
GB1.6Mpa |
||||||||||||||
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
L |
250 |
270 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
800 |
|
H |
330 |
435 |
490 |
570 |
580 |
605 |
735 |
860 |
990 |
1130 |
1520 |
1610 |
1660 |
1740 |
|
Do |
250 |
250 |
300 |
350 |
350 |
350 |
400 |
400 |
450 |
500 |
500 |
600 |
600 |
700 |
|
Wt |
23 |
35 |
37 |
49 |
81 |
103 |
162 |
190 |
252 |
499 |
600 |
695 |
856 |
1025 |
|
▲ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
750 |
1000 |
1200 |
1800 |
1800 |
|
GB22.5Mpa |
||||||||||||||
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
L |
250 |
270 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
800 |
|
H |
330 |
435 |
490 |
570 |
580 |
605 |
735 |
860 |
990 |
1140 |
1520 |
1610 |
1660 |
1740 |
|
D. |
250 |
250 |
300 |
350 |
350 |
350 |
400 |
400 |
450 |
500 |
500 |
600 |
600 |
700 |
|
Wt |
23 |
35 |
37 |
52 |
85 |
107 |
167 |
196 |
261 |
506 |
618 |
703 |
864 |
1056 |
|
▲ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
900 |
1200 |
1800 |
2500 |
3500 |
|
GB4.0Mpa |
||||||||||||||
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|||
|
L |
250 |
270 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
550 |
600 |
|||
|
H |
330 |
435 |
490 |
570 |
580 |
605 |
735 |
860 |
990 |
1140 |
1520 |
|||
|
D. |
300 |
300 |
350 |
350 |
400 |
400 |
450 |
550 |
650 |
750 |
850 |
|||
|
Wt |
27 |
38 |
42 |
57 |
91 |
110 |
169 |
207 |
266 |
513 |
627 |
|||
|
▲ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
1200 |
1800 |
|||
|
GB6.4Mpa |
||||||||||||||
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|||
|
L |
250 |
280 |
310 |
350 |
400 |
450 |
550 |
650 |
750 |
850 |
950 |
|||
|
H |
335 |
440 |
495 |
580 |
585 |
610 |
745 |
865 |
995 |
1140 |
1535 |
|||
|
D. |
300 |
300 |
350 |
400 |
400 |
450 |
550 |
650 |
750 |
850 |
900 |
|||
|
Wt |
30 |
41 |
45 |
62 |
97 |
115 |
172 |
211 |
271 |
518 |
633 |
|||
|
▲ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
1800 |
2500 |
|||
|
GB1.0Mpa |
||||||||||||||
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|||
|
L |
250 |
280 |
310 |
350 |
400 |
450 |
550 |
650 |
750 |
850 |
950 |
|||
|
H |
335 |
440 |
495 |
580 |
590 |
610 |
745 |
865 |
995 |
1140 |
1535 |
|||
|
D. |
300 |
300 |
350 |
400 |
400 |
450 |
550 |
650 |
750 |
850 |
950 |
|||
|
Wt |
34 |
46 |
50 |
67 |
102 |
121 |
178 |
217 |
278 |
524 |
640 |
|||
|
▲ |
- |
- |
- |
- |
- |
- |
- |
- |
1800 |
2500 |
2500 |
|||
