| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | DZ41Y |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | Within 15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs / month |
| High Light: | gate check valve,power plant valves |
||
|---|---|---|---|

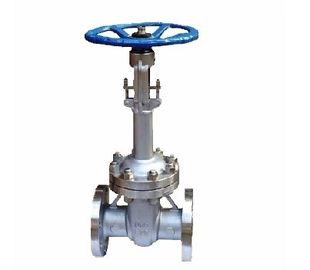

High Temperature Pressure DZ41Y stainless steel cryogenic gate valve flange 50 ~ 300MM
Model: DZ41Y
Diameter: 50 ~ 300MM
Pressure: 1.6 ~ 6.4Mpa
Temperature: -196 ~ 196 ℃
Material: carbon steel, stainless steel
Design standards: JB, GB, ANSI, BS, API, ISO, DIN, NF
150LB Main connection dimensions and weights
|
Size |
In ″ |
1/2 ″ |
3/4 ″ |
1 ″ |
1-1/ 4 ″ |
1-1/ 2 ″ |
2 ″ |
2-1 /2 ″ |
3 ″ |
4 ″ |
5 ″ |
6 ″ |
8 ″ |
10 ″ |
12 ″ |
14 ″ |
16 ″ |
18 ″ |
20 ″ |
|
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
|
|
L |
In |
5.51 |
5.98 |
6.49 |
7.00 |
7.48 |
8.50 |
9.48 |
11.14 |
12.00 |
15.00 |
15.86 |
16.49 |
17.99 |
19.76 |
30.00 |
32.94 |
35.98 |
39.01 |
|
Mm |
140 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
838 |
914 |
991 |
|
|
H |
In |
6.10 |
6.29 |
7.32 |
8.50 |
9.84 |
12.99 |
14.48 |
15.51 |
18.62 |
25.98 |
27.99 |
32.00 |
39.48 |
44.76 |
58.62 |
62.24 |
79.40 |
87.71 |
|
Mm |
155 |
160 |
186 |
216 |
250 |
330 |
368 |
394 |
473 |
660 |
711 |
813 |
1003 |
1137 |
1489 |
1581 |
2017 |
2228 |
|
|
DO |
In |
3.93 |
3.93 |
4.92 |
6.29 |
6.29 |
9.48 |
9.48 |
11.81 |
11.81 |
13.77 |
13.77 |
15.74 |
19.68 |
23.62 |
23.62 |
25.59 |
32.99 |
35.00 |
|
Mm |
100 |
100 |
125 |
160 |
160 |
250 |
250 |
300 |
300 |
350 |
350 |
400 |
500 |
600 |
600 |
650 |
838 |
889 |
600Lb Main connection dimensions and weights
|
Size |
In ″ |
1/2 ″ |
3/4 ″ |
1 ″ |
1-1/ 4 ″ |
1-1/ 2 ″ |
2 ″ |
2-1/ 2 ″ |
3 ″ |
4 ″ |
5 ″ |
6 ″ |
8 ″ |
10 ″ |
12 ″ |
14 ″ |
16 ″ |
18 ″ |
20 ″ |
|
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
|
|
L |
In |
6.49 |
7.48 |
8.50 |
9.01 |
9.48 |
11.49 |
12.99 |
14.01 |
17.00 |
20.00 |
22.00 |
25.98 |
30.98 |
32.99 |
32.99 |
39.01 |
42.99 |
47.00 |
|
Mm |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
838 |
991 |
1092 |
1194 |
|
|
H |
In |
6.10 |
6.29 |
7.32 |
8.50 |
9.84 |
20.07 |
21.81 |
23.42 |
28.03 |
32.51 |
`39.17 |
45.55 |
54.05 |
63.11 |
63.11 |
80.00 |
90.00 |
102.00 |
|
Mm |
155 |
160 |
186 |
216 |
250 |
510 |
554 |
595 |
712 |
826 |
995 |
1157 |
1373 |
1603 |
1603 |
2032 |
22.86 |
2591 |
|
|
DO |
In |
3.39 |
3.39 |
4.62 |
6.29 |
6.29 |
10.00 |
10.00 |
12.00 |
14.01 |
15.98 |
20.00 |
24.01 |
27.00 |
27.00 |
27.00 |
35.00 |
35.00 |
44.01 |
|
Mm |
100 |
100 |
125 |
160 |
160 |
254 |
254 |
305 |
356 |
406 |
508 |
610 |
686 |
686 |
686 |
889 |
889 |
1118 |
