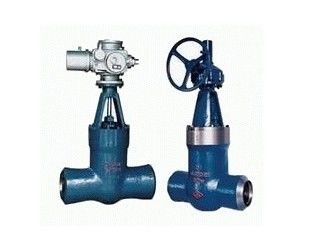

High temperature, corrosion Z960Y Electric welding gate electric power station valve

High temperature, corrosion Z960Y Electric welding gate electric power station valve

  • High temperature, corrosion Z960Y Electric welding gate electric power station valve
High temperature, corrosion Z960Y Electric welding gate electric power station valve
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: Z960Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Contact Now
Detailed Product Description
High Light:

gate check valve

,

gate globe valve

High temperature, corrosion Z960Y Electric welding gate electric power station valve



 1, the design and manufacture of such standards by JB/T3595 may be supporting the use of domestic equipment
 2, the valve in the cavity by pressure from the tight seal structure, good sealing performance, branch pipe ends for welding structure.
 3, the gate and the valve seat sealing surface of Stellite (stellite) cobalt-based alloy cladding made of wear-resistant, high temperature, corrosion, anti-abrasion performance.
 4, stem quenched and the nitrogen treatment, with good resistance to corrosion and scratch resistance.
 5, the opening and closing parts of the structure can be designed according to user board, two boards, and other forms of parallel double plate.
 Keywords: GB gate valve, electric valve, flange valve, power station valve, pneumatic valve, high temperature valve
● The manufalture and aueptanle specigication shan be based on the japanese standard E101 applied for the thermal powerand JB/T3595-93 ● The length shall bein line with E101 or by user’s speeification. ● Welding groove shan be in auordanle with power industrh spe-cification 78DG or hg user’ specification ● The size in inclose is old production’s size



Property and specifiecation



Product type
PN(MPa)Nominal pressure

 (MPa)Test pressure

 (MPa)
Working pressure

 (℃)
Working temperature

Appicable medium

Sheel test

Seal test

Z960Y-250

25

37.5

27.5

-

≤425

Water, steam

Z960Y-320

32

48.0

36.0

-

≤425

Z960Y-P54100

-

30.0

22.0

P5410

≤54

Steam

Z960Y-P54170

-

48.0

36.0

P5417

≤540

Matecrial for main parts

Part name

Material designation

Body

WCB

WC6

WC9

Disc

WCB

WC6

WC9

Bonnet

25

12Cr1Mo1VA

Stem

1Cr17Ni2

20Cr1Mo1VA

Seat

25

12Cr1Mo1VA

Sealing ring

S soft steel (flexible graphite)

S soft steel

F Soft steel

Packing

Fexible graphite

Yoke

WCB

WCB or WC6

Stem nut

45(ZCuZn25A16Fe3Mn3)

Four piece ring

1Cr13

20Cr1MoVA





DNNominal diameter

 (mm)Main external and connecting dimensions

Electric dewice

(kg)Weight

d

L

H

L1

L2

Z960Y-250

100

84

406

1164

437

277

DZW45

234

125

100

483

1402

437

277

DZW60

343

175

158

711

1650

554

309

DZW180

638

225

200

864

1650

554

309

DZW180

654

300

280

1067

2106

764

398

DZW350

1973

Z960Y-320

100

96

533

1236

437

277

DZW60

291

125

118

610

1302

437

277

DZW60

315

150

148

762

1403

526

283

DZW90

672

175

148

762

1650

554

309

DZW180

684

225

222

1041

1650

554

309

DZW180

696

Z960Y-P54100V

175

148

762

1650

554

309

DZW180

683

225

222

1041

1650

554

309

DZW180

704

250

222

1041

1795

554

309

DZW180

1214

300

294

1245

2080

554

309

DZW250

2125

Z960Y-P54170V

125

98

630

1230

437

277

DZW60

312

225

186

1060

1680

554

309

DZW180

1401

300

278

1397

2265

764



DZW500

2834

325

310

1448

2265

690

398

DZW500

2632

350

338

1550

2536

715



DZWC-4
