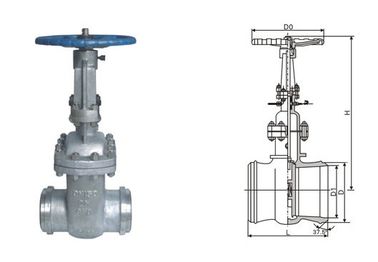

DS / Z64H Pipeline Cast steel gate valve water sealed by flange and welding

DS / Z64H Pipeline Cast steel gate valve water sealed by flange and welding

DS / Z64H Pipeline Cast steel gate valve water sealed by flange and welding

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	DS/Z64H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box
Delivery Time:	Within 15days
Payment Terms:	T/T
Supply Ability:	1000pcs / month

Contact Now

Detailed Product Description

High Light:

gate check valve

,

power plant valves

DS / Z64H Pipeline Cast steel gate valve water sealed by flange and welding

Chief strucure features and usages

1.The chamber of packing of the valve's bonnet is of a water-sealed structure, which, when the water of 0.6-1MPa

pressure goes into the mouthpiec, can make the system isolated from air to ensure the system with

a good leak proofness

2.Model S/Z series use dual-gate dual-direction elastic sealings.being flesible and

fast to open and close, reliable sesling

3.Simple, compact and reaso able structur, easy to overhaul and long duration

4.When to be used as the open&close device on pipelines, it must be in fully-opened or fully-closed

state and unallowed to be used for flow adjustment

5.Two ways of connection:by flange and welding, two driving ways:manually and electrically

6.Suitable to act as the open & close device for the pipelines with the working medium of water,

steam, oil goods and non-corrosive gas, especially for the vacuum condensation system of the

steam tufbine in steam power palnts

Chief property and specification
PN(MPa)Nominal pressure	PN(MPa)Nominal pressure
(MPa)Shell strength test	1.0	1.6	2.5	4.0	6.4	10.0
(MPa)Seal test	1.5	2.4	3.8	6.0	9.6	15.0
(MPa)Back seal test	1.1	1.8	2.8	4.4	7.0	11.0
Leak-proofness test	1.1	1.8	2.8	4.4	7.0	11.0
Applicable
Produect classification	℃ Working remperature			Suitable medium
(C)Carbon steel	≤425			Water.steam. oil goods. non-corrosive gas
(I)Alloy steel	≤540			Water.steam. oil goods. non-corrosive gas
Material for main parts
Product type	Part name
Product type	Body.bonnet. yoke	stem	Walge gate disc seal face	Seatring seal face	Yoke nut	Packing
(C)Carbon steel	WCB	1Cr13 or 2Cr13	Cr13 Sainless steel or carbide alloy	Stainless steel	Al bronze	Flexible graphite
(I)Alloy steel	WCB Cr5Mol	20Cr1Mo1VA	Co-based alloy	Carbide alloy	Al bronze	Flexible graphite

Main dimensions and weight

DS/Z64H- 16C, 25
DN(mm)Nominal diameter	L	α	H	Do	PN1.6(MPa)			PN2.5(MPa)
DN(mm)Nominal diameter	L	α	H	Do	D	D1	(kg)Weight	D	D1	(kg)Weight
50	250	37°30′	334	250	58	50	19	64	49	23
65	270	37°30′	439	250	75	65	32	82	67	35
80	280	37°30′	495	300	91	79	34	95	77	37
100	300	37°30′	575	350	110	97	44	117	101	49
125	325	37°30′	587	350	136	121	75	144	126	78
150	350	37°30′	607	350	163	146	82	172	158	105
200	400	37°30′	740	400	223	202	158	223	202	160
250	450	37°30′	863	400	278	254	184	278	254	188
300	500	37°30′	990	400	330	305	245	330	305	249
350	550	37°30′	1137	500	382	352	492	382	352	497
400	600	37°30′	1523	500	432	399	588	432	399	592
450	650	37°30′	1618	600	485	451	683	485	451	688
500	700	37°30′	1657	600	535	501	846	535	499	853
600	800	37°30′	1746	700	636	601	1013	636	599	1020
Annotation:PN1.6(16) valve is permit be used as PN1.0(10).

Main dimensions and weight

Nominal diameter	L	D	α	PN4.0(MPa)				PN6.4(MPa)				PN10.0(MPa)
Nominal diameter	L	D	α	D1	H	D0	(kg)Weight	D1	H	D0	(kg)Weight	D1	H	D0	(kg)Weight
50	250	64	37°30′	49	345	300	30	50	350	300	34	49	350	300	37
65	270	83	37°30′	67	441	300	38	66	447	300	41	64	447	300	44
80	280	96	37°30′	79	495	350	42	77	499	350	45	75	499	350	47
100	300	117	37°30′	101	575	350	52	99	582	400	55	97	582	400	57
125	325	144	37°30′	126	587	400	80	129	590	400	83	125	590	400	87
150	350	172	37°30′	152	607	400	107	150	611	450	110	145	611	450	113
200	400	223	37°30′	200	740	450	164	198	745	550	169	190	747	550	172
250	450	278	37°30′	252	863	550	191	246	867	650	195	236	869	650	198
300	500	330	37°30′	302	1008	650	254	194	1008	750	260	282	1013	750	265
350	550	382	37°30′	350	1142	750	499	342	1148	800	504	334	1148	850	508
400	650	432	37°30′	397	1527	850	598	387	1531	900	604	377	1533	950	610

Main dimensions and weight

S/Z44H-40 S/Z944H-40

Nominal diameter	L	D	D1	D2	D6	f	b	f2	z-d	Manuall			Electriecally
Nominal diameter	L	D	D1	D2	D6	f	b	f2	z-d	H	D0	(kg)Weight	H	Electric device	(kg)Weight
50	250	160	125	100	88	3	20	4	4-18	330	300	27	620	DZW10	55
65	270	180	145	120	110	3	22	4	8-18	435	300	38	714	DZW10	65
80	280	195	160	135	121	3	22	4	8-18	491	350	42	765	DZW15	70
100	300	230	190	160	150	3	24	4.5	8-23	573	350	57	840	DZW20I	86
125	325	270	220	188	176	3	28	4.5	8-25	582	400	91	852	DZW20I	120
150	350	300	250	218	204	3	30	4.5	8-25	605	400	110	875	DZW30	138
200	400	375	320	282	260	3	38	4.5	12-30	739	450	169	1015	DZW30	200
250	450	445	385	345	313	3	42	4.5	12-34	862	550	207	1225	DZW4	298
300	500	510	450	408	364	4	46	4.5	16-34	990	650	266	1371	DZW60	383
350	550	570	510	465	422	4	52	5	16-34	1139	750	513	1507	DZW90I	601
400	600	655	585	535	474	4	58	5	16-41	1523	850	627	1912	DZW120	866

Main dimensions and weight

DN(mm) Nominal diameter	L	D	D1	D2	D6	f	b	f2	z-d	Manuall			Electrically
DN(mm) Nominal diameter	L	D	D1	D2	D6	f	b	f2	z-d	H	Do	(kg) Weight	H	electric device	(kg) Weight
DS/Z40H-64 DS/Z940H-64
50	250	175	135	105	88	3	26	4	4-23	237	300	30	622	DZW10	58
65	280	200	160	130	110	3	28	4	8-23	441	300	41	714	DZW15	69
80	310	210	170	140	121	3	30	4	8-23	496	350	45	765	DZW20I	73
100	350	250	200	168	150	3	32	4.5	8-25	578	400	62	840	DZW20I	90
125	400	295	240	202	176	3	36	4.5	8-30	588	400	97	852	DZW30	124
150	450	340	280	240	204	3	38	4.5	8-34	610	450	115	875	DZW30	142
200	550	405	345	300	260	3	44	4.5	12-34	744	550	172	1195	DZW45	270
250	650	470	400	352	313	3	48	4.5	16-41	867	650	211	1225	DZW60	317
300	750	530	460	412	364	4	54	4.5	16-41	996	750	271	1393	DZW90O	399
350	850	595	525	475	422	4	60	5	16-41	1142	850	518	1507	DZW120I	647
400	950	670	585	525	474	4	66	5	16-48	1537	900	633	2075	DZW180	882
DS/Z40H-100 DS/Z940H-100
50	250	195	145	112	88	3	28	4	4-25	337	300	34	622	DZW10	62
65	280	220	170	138	110	3	32	4	8-25	441	300	46	714	DZW15	74
80	310	230	180	148	121	3	34	4	8-25	496	350	50	765	DZW20I	78
100	350	265	210	172	150	3	38	4.5	8-30	578	400	67	840	DZW30I	95
125	400	310	250	210	176	3	42	4.5	8-34	588	400	102	852	DZW30	129
150	450	350	290	250	204	3	46	4.5	12-34	610	450	121	875	DZW45	221
200	550	430	360	312	260	3	54	4.5	12-41	744	550	178	1195	DZW60	235
250	650	500	430	382	313	3	60	4.5	12-41	867	650	217	1225	DZW90I	345
300	750	585	500	442	364	4	70	4.5	16-48	996	750	278	1393	DZW120I	409
350	850	655	560	498	422	4	76	5	16-54	1142	850	524	1507	DZW180	773
400	950	715	620	558	474	4	80	5	16-54	1537	950	640	2075	DZW250	892
