API 598 SCVX silence check valve GG25 body diameter 300 - 1200mm for sump pump

API 598 SCVX silence check valve GG25 body diameter 300 - 1200mm for sump pump

  • API 598 SCVX silence check valve GG25 body diameter 300 - 1200mm for sump pump
API 598 SCVX silence check valve GG25 body diameter 300 - 1200mm for sump pump
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: SCVX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Contact Now
Detailed Product Description
High Light:

power plant valves

,

gate globe valve

API 598 SCVX silence check valve GG25 body diameter 300 - 1200mm for sump pump



Product introduction


Oversized silence check valve is flow-line designed according to hydrodynamics and the

pressure loss is very little.The valve is installed at the outlet of the pump, and it closes

before the fluid flow backward, so prevent water-hammering, water-hitting and destructive impact.So the valve can run quietly in the system.It is widely used in

feeding/draining system, fire protection, heat supplying system and industry.


Main technical parameters


Nominal pressure: 1.0-2.5MPa
Nominal diameter: 300-1200mm
Service:water, oils, sea water, sewage
Working temperature:0-80
Flanged end: GB/T17241.6 GB9113
Inspection and test: GB/T 13927 API 598

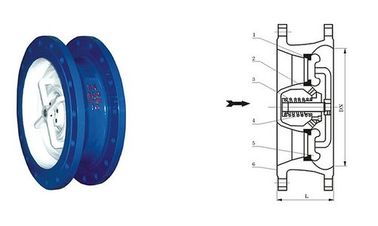

Typical installation diagram



Material



part

body

disc

bearing

spring

Diversion shuttle

seat

material

GG25

ZQA19-4

ZQA19-4

SUS316

Gg25

ZQA19-4




Main dimensions unit:mm



DN

300

350

400

450

500

600

700

800

900

1000

1200

L

181

184

191

203

219

222

280

356

368

432

524
