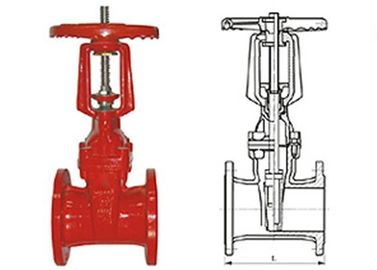

Industry RRHX rising stem resilient gate Power Station Valve Stainless steel Stem GB9113



Rising stem resilient gate valve has general resilient seated gate valve's advantage and at the same time can show the valve's opening directly.It can open or close liable and quickly so is widely used in fire protection and industry system Generally the valve is installed in high position to the ground.



Material



Serial no.

Part

Material

1

Handwheel

Ductile iron

2

Stem nut

Copper alloy

3

Support

Grey cast iron, ductile cast iron, cast steel

4

Gland

ductile cast iron, cast steel

5

Gasket

Buna-N rubber or EPDM

6

Stem

Stainless steel

7

Gasket

Buna-N rubber or EDPM

8

Disc

Ductile cast iron packed with rubber or EDPM outside

9

Body

Greycast iron, ductile cast iron, cast steel



Main technic-al parameters


Nominal pressure: 1.0-2.5MPaWorking temp.:0-120Flanged end:GB/T17241.6 GB9113, ASME 16.5 etc..
Nominal diameter: 50-400mmService:water, oils, gas etc..Inspection and test:GB 13927 API 598


Main dimensionsunit:mm



DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

178

190

203

229

254

267

292

330

356

381

406

432

457

508

Hmin(full close)

313

332

372

424

497

562

680

837

948

1010

1220

1280

1480

1665

Hmax(full open)

355

375

415

476

540

600

720

875

990

1050

1245

1310

1560

1750
