| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | YB2 series |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets/month |
| High Light: | three phase electric motors,ac electric motors |
||
|---|---|---|---|

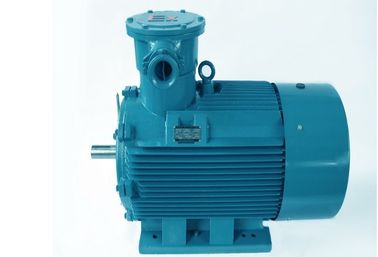

YB2 series IP55 Explosion proof asynchronous motors 0.55 ~ 315KW YB2-801-2, YB2-802-2, YB2-90S-2, YB2-90L-2, YB2-100L-2, YB2-200L2-2, YB2-250M-2
Operating conditions
Ambient temperature: -15≤0≤40
Altitude: Not exceeding 1000meters
Frame: 80~355
Output(KW): 0.55~315
Rated voltage(V): 220/380, 380/660, etc.
Rated frequency(HZ): 50/60
Connection: Y star-connection for 3kw and below
Delta-connection for 4kw and above
Duty/Rating: Continuous (S1)
Insulation class: Class F
Protection class: IP55
Mounting type: B3, B5, B35, V1, etc
Specifications:
|
Technical Data of YB2 series |
||||||
|
Type |
Rated Output |
Volt |
Current |
Fred |
Speed |
|
|
(kW) |
(HP) |
(V) |
(A) |
(Hz) |
(r/min) |
|
|
Synchronous speed 3000r/min 2p |
||||||
|
YB2-801-2 |
0.75 |
1 |
380 |
1.8 |
50 |
2840 |
|
YB2-802-2 |
1.1 |
1.5 |
380 |
2.6 |
50 |
2840 |
|
YB2-90S-2 |
1.5 |
2 |
380 |
3.4 |
50 |
2850 |
|
YB2-90L-2 |
2.2 |
3 |
380 |
4.8 |
50 |
2850 |
|
YB2-100L-2 |
3 |
4 |
380 |
6.2 |
50 |
2870 |
|
YB2-112M-2 |
4 |
5.5 |
380/660 |
8.1/4.7 |
50 |
2890 |
|
YB2-132S1-2 |
5.5 |
7.5 |
380/660 |
11.1/6.3 |
50 |
2900 |
|
YB2-132S2-1 |
7.5 |
10 |
380/660 |
14.8/8.6 |
50 |
2900 |
|
YB2-160M1-2 |
11 |
15 |
380/660 |
21.6/12.5 |
50 |
2940 |
|
YB2-160M2-1 |
15 |
20 |
380/660 |
28.8/16.6 |
50 |
2940 |
|
YB2-160L-2 |
18.5 |
25 |
380/660 |
35.5/20.5 |
50 |
2940 |
|
YB2-180M-2 |
22 |
30 |
380/660 |
41/23.7 |
50 |
2950 |
|
YB2-200L1-2 |
30 |
40 |
380/660 |
55.5/32.1 |
50 |
2950 |
|
YB2-200L2-2 |
37 |
50 |
380/660 |
67.9/39.2 |
50 |
2950 |
|
YB2-225M-2 |
45 |
60 |
380/660 |
82.1/47.4 |
50 |
2960 |
|
YB2-250M-2 |
55 |
75 |
380/660 |
99.7/57.5 |
50 |
2970 |
|
YB2-280S-2 |
75 |
100 |
380/660 |
134.4/77.5 |
50 |
2970 |
|
YB2-280M-2 |
90 |
125 |
380/660 |
160.2/92.5 |
50 |
2970 |
|
YB2-315S-2 |
110 |
154 |
380/660 |
195.4/112.5 |
50 |
2980 |
|
YB2-315M-2 |
132 |
184 |
380/660 |
233.2/134.3 |
50 |
2980 |
|
YB2-315L1-2 |
160 |
222 |
380/660 |
279.3/160.8 |
50 |
2980 |
|
YB2-315L2-2 |
200 |
279 |
380/660 |
348.4/200.6 |
50 |
2980 |
|
Synchronous speed 1500r/min 4P |
||||||
|
YB2-801-4 |
0.55 |
0.75 |
380 |
1.5 |
50 |
1390 |
|
YB2-802-4 |
0.75 |
1 |
380 |
2 |
50 |
1390 |
|
YB2-90S-4 |
1.1 |
1.5 |
380 |
2.9 |
50 |
1390 |
|
YB2-90L-4 |
1.5 |
2 |
380 |
3.7 |
50 |
1390 |
|
YB2-100L1-4 |
2.2 |
3 |
380 |
5.1 |
50 |
1420 |
|
YB2-100L2-4 |
3 |
4 |
380 |
6.8 |
50 |
1420 |
|
YB2-112M-4 |
4 |
5.5 |
380/660 |
8.8/5.1 |
50 |
1430 |
|
YB2-132S-4 |
5.5 |
7.5 |
380/660 |
11.5/6.7 |
50 |
1440 |
|
YB2-132M-4 |
7.5 |
10 |
380/660 |
15.4/8.9 |
50 |
1440 |
|
YB2-160M-4 |
11 |
15 |
380/660 |
22.3/12.9 |
50 |
1460 |
|
YB2-160L-4 |
15 |
20 |
380/660 |
30.1/17.4 |
50 |
1460 |
|
YB2-180M-4 |
18.5 |
25 |
380/660 |
36.5/21.1 |
50 |
1470 |
|
YB2-180L-4 |
22 |
30 |
380/660 |
43.1/24.9 |
50 |
1470 |
|
YB2-200L-4 |
30 |
40 |
380/660 |
57.6/33.3 |
50 |
1470 |
|
YB2-225S-4 |
37 |
50 |
380/660 |
69.9/40.3 |
50 |
1480 |
|
YB2-225M-4 |
45 |
60 |
380/660 |
84.7/48.9 |
50 |
1480 |
|
YB2-250M-4 |
55 |
75 |
380/660 |
102.7/59.3 |
50 |
1480 |
|
YB2-280S-4 |
75 |
100 |
380/660 |
139.6/80.6 |
50 |
1480 |
|
YB2-280M-4 |
90 |
125 |
380/660 |
166.9/96.3 |
50 |
1480 |
|
YB2-315S-4 |
110 |
154 |
380/660 |
198.7/114.4 |
50 |
1485 |
|
YB2-315M-4 |
132 |
184 |
380/660 |
237.7/136.9 |
50 |
1485 |
|
YB2-315L1-4 |
160 |
222 |
380/660 |
284.3/163.7 |
50 |
1485 |
|
YB2-315L2-4 |
200 |
279 |
380/660 |
354.7/204.2 |
50 |
1485 |
This series motors are designed and manufactured into flameproof type and the flameproof property conform to China National Standards: GB3836.1-2000 Electrical Apparatus for Explosive Gas Atmospheres, General Requirements GB3836.2-2000, Electrical Apparatus for Explosive Gas Atmospheres, Flameproof Enclosure Standards IEC79-1, BS4683 and EN50018.The explosion protection marks are ExdI, ExdIIAT4, ExdIIBT4, they are safe to use in the locations where there are explosive mixtures of gas and vapor air.
