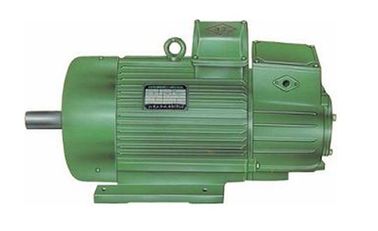

YZR112M YZR,YZ series 6 Poles metallurgical and crane 3 Phase Electric Motors IEC 72

YZR112M YZR,YZ series 6 Poles metallurgical and crane 3 Phase Electric Motors IEC 72

  • YZR112M YZR,YZ series 6 Poles metallurgical and crane 3 Phase Electric Motors IEC 72
YZR112M YZR,YZ series 6 Poles metallurgical and crane 3 Phase Electric Motors IEC 72
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: YZ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000sets/month
Contact Now
Detailed Product Description
High Light:

dc electric motors

,

ac electric motors

YZR280M YZR280S YZR250M2 YZR160L 6 Poles metallurgical and crane 3 Phase Electric Motors IEC 72 frequency is 380V, 50HZ




Specifications:

S3 (starting 6 per hour) - 40%

Frame
Size

Rated Power
(KW)

Stator Current
(A)

Rotor Current
(A)

Torque

No-load Current
(A)

Speed
(r/min)

Eff.
(%)

Power

Factor
(cosø)



(6 Poles) Synchronous Speed 1000 rev/min.

YZR112M

1.5

4.6

12.5

2.3

3.37

866

62.9

0.79



YZR132M1

2.2

6.1

12.6

2.9

4.04

908

73

0.76



YZR132M2

3.7

9.2

14.5

2.5

5.58

908

77

0.8



YZR160M1

5.5

15

25.7

2.6

7.95

930

75.7

0.74



YZR160M2

7.5

18

26.5

2.8

11.2

940

79.4

0.8



YZR160L

11

24.9

27.6

2.5

13

945

82

0.82



YZR180L

15

33.8

46.5

3.2

18.8

962

83

0.81



YZR200L

22

49.5

69.9

2.88

26.6

964

86

0.803



YZR225M

30

62

74.4

3.1

29.9

962

88.3

0.83



YZR250M1

37

70.5

91.5

3.1

26.5

960

89.2

0.9



YZR250M2

45

84.5

95

3.1

28.2

965

90.6

0.89



YZR280S

55

101.5

119.8

3

34

969

89

0.9



YZR280M

75

138

122.6

3.1

50

969

91

0.906





Descrition:

These series of metallurgical and crane 3-phase motor YZR, YZ with wound and squirrel cage rotor are specially used to drive metallurgical crane and other similar machines with better overload capability and mechanical strength, therefore, it is suitable for short time duty or intermittent period duty and equipments with frequent starting and braking or distinct vitration and impact.



The standard range of power output and mounting dimensions are in comply with the reconmended standard of IEC 72, the relation between range of power output and mounting dimensions are similar to standard JEM1202 and West Germany standard DIN42681, so that most of them can be interchanged.



The motor can work well when the altitude does not exceed 1000m.



There are two classes of F and H insulation, Class F is applicalbe to suit temperature which cool air does not exceed 40℃ under normal condition, Class H is suitable for metallurgical sites when ambient temperature no exceeding 60℃ both motors have same data.



The motors possess better enclosure, degree of protection IP44 for normal site condition, and IP54 for metallurgical condition.Motor's rated voltage and frequency is 380V, 50HZ
