| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | 00M / HBC series |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 35days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 200sets |
| High Light: | electro hydraulic actuator,electro hydraulic machinery |
||
|---|---|---|---|

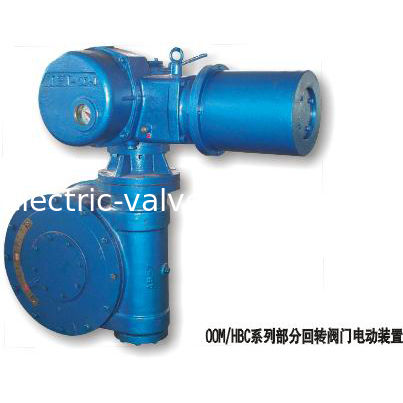

00M3/H3BC, 00M4/H4BC quarter turn electric value actuator Motor power 1.1KW, 2.2KW
Specifications
|
Model |
Output torque Nm |
Output rotational speed r/min |
90 degree Running time S |
Motor power KW |
Motor current A |
|
00M3/H3BC |
8000 |
0.25 |
60 |
1.1 |
23.8 |
|
0.5 |
30 |
1.5 |
31.5 |
||
|
00M3/H4BC |
10000 |
0.25 |
60 |
1.5 |
31.5 |
|
0.5 |
30 |
2.2 |
45.5 |
||
|
00M4/H4BC |
16000 |
0.3 |
50 |
2.2 |
45.5 |
|
0.6 |
25 |
2.2 |
45.5 |
||
|
18000 |
0.3 |
50 |
3.0 |
63 |
|
|
0.6 |
25 |
3.0 |
63 |
||
|
00M5/H5BC |
27000 |
0.3 |
50 |
1.0 |
77 |
|
00M5/H6BC |
45000 |
0.3 |
50 |
5.5 |
98 |
Description
00M / HBC series is part-turn electric value actuator which is applied with ball value . butterfly value and electric choke . this structure is combined model that SMC multi-turn electric value actuator combines HBC part-turn electric value actuator .
This ambient temperature , relative humidity , sea level height and protection grade of this series is same SMC .
As well as technology and electric control theory is same SMC .
