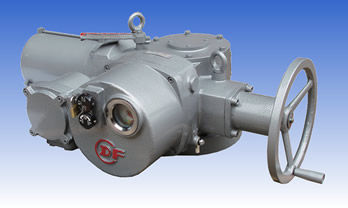

ZC (B) Z-type as a whole (integration) Intelligence Electric Actuator Motor 60 Hz

ZC (B) Z-type as a whole (integration) Intelligence Electric Actuator Motor 60 Hz

  • ZC (B) Z-type as a whole (integration) Intelligence Electric Actuator Motor 60 Hz
ZC (B) Z-type as a whole (integration) Intelligence Electric Actuator Motor 60 Hz
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: ZC120-30/60BZ, ZC120-30/60BZ, ZC250-30/60BZ, ZC350-30/60BZ, ZC500-30/60BZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 35days after signing the contract
Payment Terms: T/T
Supply Ability: 200sets
Contact Now
Detailed Product Description
High Light:

electro hydraulic actuator

,

electro hydraulic machinery

ZC (B) Z-type as a whole (integration) Intelligence Electric Actuator Motor 60 Hz



Specifications

1, Power Supply
Motor  380V, 50Hz 60Hz, 60 Hz for special order
Remote Control: DC 24V, minimum value for on of control signal gate is 20V, and maximum value for off is 1.5V; actuating current of control signal is 15 mA (approximate the load of 1.6kΩ, 0.36W)


2, Service Environment
(1)Flameproof type: according to the standard, these actuators are provided with Class dI (as electric apparatus for colliery mine) and Class dIIBT4 (for plant and works). Class dIIBT4 is suitable to the atmosphere of explosive gases mixture specified by groups T1~T4 of Class IIA and Class IIB. Class dIICT4 is for special order (for details, see Std GB3836.12000 ELECTRICAL APPARTAS FOR EXPLOSIVE GAS ATMOSPHERESPART I: GENERAL REQUIREMENTS )
(2) Normal type: no corrosive, flammable or explosive media
(3) Ambient temperature: -20~60
(4) Relative humidity: ≤90% (at 25)
(5) Protection: IP55



Description:


Whole-general, the overall number of rotary-type explosion-proof electrical equipment by the valve ZC45 ~ 250 (B) electric valve control device attached electrical components, and ZC350 ~ ZC1000BZ by ZC180 ~ 250BZ slow device stacking components. This series of valve control module built-in electrical devices, high-capacity contact, can no longer use the electronic control box, it has a small, full-function (with the addition of automatic identification and lack of sequence with protection, remote control in four ways , Plus an emergency valve clearance function), simple to install wiring (only access three-phase power lines can operate at the scene), to facilitate maintenance (DC24V voltage electrical circuit through the control of electrical components used between the connected Connecto r), etc. .



The product perfo rmance to meet JB/T8528-1997 "common-valve electric device technology", explosion-proof perfo rmance index reached GB3836.1-83 "explosive environment with explosion-proof electrical equipment general requirements", GB3836.2 - 83, "an explosive environment with explosion-proof electrical equipment explosion-proof electrical equipment" d "" and JB/T8529-1997 "explosion-proof electrical valve device technology". Explosion-proof products: the standard classification, the device has d(coal mine with electrical equipment) and dBT4 (plant with) two. Special o rders can be dCT4. Remote Control: DC24V, control signal threshold fo r the "on" the minimum 20V; "off" to the maximum 1.5V; control signal to pull current 15mA (the equivalent of 1.6k, 0.36W load). DC24V power machine can be provided, users can also bring their own (available on-site selection and change the facto ry default fo r the machine to provide).450N m from the to rque output to 10000N m (five aircraft seat), the output speed of a 12, 18, 24, 30, 36, 42, 48, 60 r / mi eight to choose from. (Mo re to rque output of non-high-speed) to provide to rque and thrust the two-connection size, respectively, in line with the standards and JB2920 standard ISO5210. Valve position transmitter (4 ~ 20mA current output) as an annex fo r selection
