| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | SND-QDZ12.5/0.6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 35days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 300sets |
| Power: | Three-phase AC 380V, 50 Hz (o R Single-phase AC 220V, 50Hz) | Wo Rking Standard: | S2 System (sho Rt-time Wo Rking) |
|---|---|---|---|
| Output: | 4mA DC ~ 20mA DC | Protection Rating: | IP65 |
| High Light: | electromagnetic brakes,electro hydraulic machinery |
||

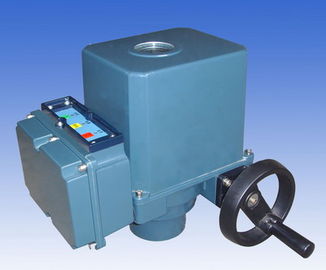

AC 380V Electric Valve Actuator IP65 SND - QDT12.5 For Sewage Treatment
Specifications
|
Model |
Torque 10N·m |
Motor |
Output speed r/min |
Back turn 90° (S) |
Manual speed ratio |
Stem diameter |
Frame size |
|
|
kW |
A |
|||||||
|
SND-QDZ(I)12.5 |
12.5 |
0.04 |
0.22 |
1, 0.6 |
1r/min for 15S,
0.6r/min for 25S |
77 |
28 |
01 |
|
SND-QDZ(I)25 |
25 |
0.06 |
0.35 |
|||||
|
SND-QDT12.5 |
12.5 |
0.04 |
0.22 |
0.6 |
||||
|
SND-QDZ(I)50 |
50 |
0.15 |
0.65 |
1, 0.6 |
96 |
42 |
02 |
|
|
SND-QDT25 |
25 |
0.12 |
0.51 |
0.6 |
||||
|
SND-QDZ(I)100 |
100 |
0.25 |
1.38 |
1, 0.6 |
90 |
50 |
03 |
|
|
SND-QDT50 |
50 |
0.18 |
0.95 |
0.6 |
||||
|
SND-QDT80 |
80 |
0.25 |
1.38 |
|||||
Description
SND-QDZ part of the overall rotary-type electric company Schneider is a series of new members. Applied to industrial processes of open-loop control system that can reliably on the valve, throttle to implement precise control. Mainly used in power plant desulfurization systems, sewage treatment, ventilation pipes and other fields.
The product perfo rmance to meet JB/T8528-1997 "common-valve electric device technology" standards. Products built-in control module, no longer using the electronic control box, it has a light weight, small size, high-precision control, easy to debug, long life and so on. Have opened to the customs interlocking, cross moment, limit travel and other protection.
Working environment
1. Power: three-phase AC 380V, 50 Hz (o r single-phase AC 220V, 50Hz)
2. Ambient temperature: -40~ +70
3. Relative Humidity95% (+25 ℃)
4. Wo rking standard: S2 system (sho rt-time wo rking)
5. Output: 4 ~ 20mA DC
6. Protection rating: IP65
