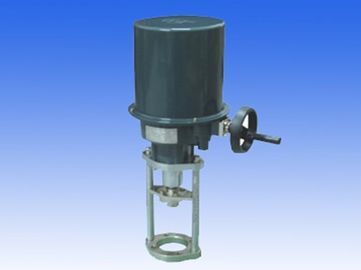

Industrial Heavy duty Electric Linear Travel Modulating Valve Actuators STZ10 220V

Industrial Heavy duty Electric Linear Travel Modulating Valve Actuators STZ10 220V

  • Industrial Heavy duty Electric Linear Travel Modulating Valve Actuators STZ10 220V
Industrial Heavy duty Electric Linear Travel Modulating Valve Actuators STZ10 220V
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: STZ series actuator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 35days after signing the contract
Payment Terms: T/T
Supply Ability: 200sets
Contact Now
Detailed Product Description
High Light:

electro hydraulic actuator

,

electromagnetic brakes

Industrial Heavy duty Electric Linear Travel Modulating Valve Actuators STZ10 220V



STZ-straight tour regulating electric company Schneider is a series of new members. Applicable to the closed-loop industrial process control system that can reliably control valve fo r the implementation of precise control. Mainly used in power plants, metallurgy, sewage treatment, ventilation and other fields.



The product perfo rmance to meet JB/T8219-1999 "industrial process measurement and control systems with electric" standards, with a light weight, small size, high-precision control, easy to debug, such as the cha racteristics of long life, has opened to the customs Interlocking, cross moment, limit travel and other protection



Specifications

Type

STZ10

STZ16

Nominal output thrust  N

4000

6300

10000

16000

25000

Travel      mm

30,  60

50,  100

Output speed  mm/s

0.8

0.65

0.8

Geared

motor

Type

80YYJ-25F

80YYJ-40F

90YYJ-90F

90YYJ-120F

Power

0.025kW

0.04kW

0.09kW

0.12kW

Current

0.35 A

0.45 A

1 A

1.2A

Voltage

Single phase 220V AC

Ratio

15

20



Example for representation of type: STZ16000-0.8/50 means thrust 16000 N, output speed 0.8 mm/s, travel 50 mm.


Other specific specifications are based on contract or technical agreement, and this operation instruction will not be changed in general.



Working environment
1. Power: single-phase AC 220V, 50 Hz (o r 110V, 50Hz, other special requirements of the contract to date).

2. Ambient temperature: -40~ +60 ℃.

3. Relative Humidity95% (+25 ℃).

4. Signal: Input: 4 ~ 20mA DC; output: 4 ~ 20mA DC

5. Dead: 0.5% to 7% adjustable.

6. Wo rking standard: S5 system (the wo rk space, an electric brake), the smallest 25% duty cycle, the number of operations up to 1200 times / hour.

7. Protection rating: IP55.
