High Pressure Pneumatic Power Station Valve , Two / Three-Way On Off Valve

High Pressure Pneumatic Power Station Valve , Two / Three-Way On Off Valve

  • High Pressure Pneumatic Power Station Valve , Two / Three-Way On Off Valve
High Pressure Pneumatic Power Station Valve , Two / Three-Way On Off Valve
Product Details:
Place of Origin: China
Model Number: ZSQ-402
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: carton box
Delivery Time: 15days
Payment Terms: TT
Supply Ability: 10000/ month
Contact Now
Detailed Product Description
High Light:

gate check valve

,

power plant valves

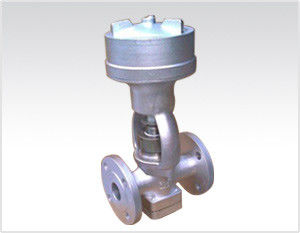

High Pressure Pneumatic Power Station Valve , Two / Three-Way On Off Valve





Pneumatic two-bit two, three-way cut-off valve, receive air pressure signal of regulation instrument, close or open valve, regulate processing parameters of pressure, temperature, flow and liquid level of system, also can receive manual given signal, achieve remote operation

This valve contain simple structure, reliable sealing, convenient maintenance and fire and explosion prevention

Structure features:
Piston actuator, small size, large output force

Sealing surface of valve spool, use soft PTFE, reliable sealing

Easy to change three-way to two-way with valve cover

Use balanced valve spool, small unbalanced force, piston actuator, enough output force

Nominal diameter DN(mm)

G1/2”

25

40

50

Diameter of valve seat DN(mm)

12

20

25

30

38

48

Nominal pressure PN(MPa)

4.0

Travel   mm

10

16

25

Signal pressure  KPa

350

Maximum output force N

1200

3840

8470

13670

Working temperature ℃

-40~200℃

,
