Place of Origin: | China |
Brand Name: | OEM |
Model Number: | WRR-131 |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box packing |
Delivery Time: | 15 days after signing the contract |
Payment Terms: | T/T |
Supply Ability: | 1000sets |
High Light: | s type thermocouples,high temperature thermocouple |
---|

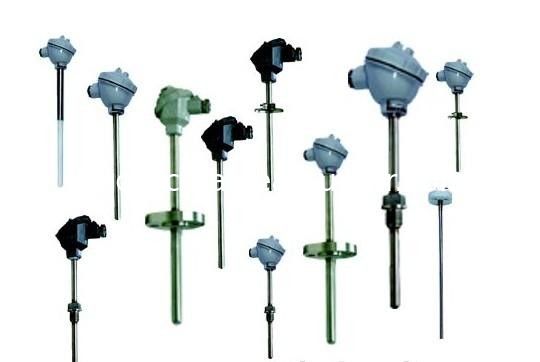

Temperature Thermocouple Magnetic Level Gauges For Liquid , Vapor WRR-131
Thermocouple type | model | graduation | Temp range oC |
Specs
|
Response time T0.5S | |
Dia
mm
|
Protection casing matertial | |||||
Single PtRh30-PtRh6 | WRR-120 | B | 0~1600 | Φ16 | corundum | <150 |
WRR-121 | Φ25 | <360 | ||||
Double PtRh30-PtRh6 | WRR2-120 | Φ16 | <150 | |||
WRR2-121 | Φ25 | <360 | ||||
Single PtRh10-Pt | WRP-120 | S | 0~1300 | Φ16 | High alumium | <150 |
WRP-121 | Φ25 | <360 | ||||
Double PtRh10-Pt | WRP2-120 | Φ16 | <150 | |||
WRP2-121 | Φ25 | <360 | ||||
Single NiCr-NiSi | WRN-122 | K | 0~1100 | Φ16 | High alumium | <240 |
WRN-123 | 0~1200 | Φ20 | ||||
doubleNiCr-NiSi | WRN2-123 | 0~1100 | ||||
Single PtRh30-PtRh6 | WRR-130 | B | 0~1600 | Φ16 | corundum | <150 |
WRR-131 | Φ25 | <360 | ||||
Double PtRh30-PtRh6 | WRR2-130 | Φ16 | <150 | |||
WRR2-131 | Φ25 | <360 | ||||
Single PtRh10-Pt | WRP-130 | S | 0~1300 | Φ16 | High alumium | <150 |
WRP-131 | Φ25 | <360 | ||||
Double PtRh10-Pt | WRP2-130 | Φ16 | <150 | |||
WRP2-131 | Φ25 | <360 | ||||
Single NiCr-NiSi | WRN-133 | K | 0~1200 | Φ30 | High alumium | <240 |
double NiCr-NiSi | WRN2-133 | 0~1100 |
