| Place of Origin: | China |
| Brand Name: | OEM |
| Model Number: | WRR2-120 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 15 days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |
| High Light: | temperature measurement thermocouple,high temperature thermocouple |
||
|---|---|---|---|

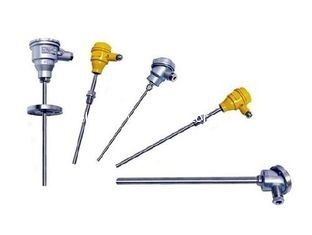

Custom Made Assembly Type Thermocouple Magnetic Level Gauges WRR2-120
assembly-type thermocouple
As the sensor of the temperature measurement, assembly-type thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1800℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all in line of IEC international standard graduation.
|
category
|
mode
|
graduation
|
range
|
Allowable error(△t℃)
|
| Platinum 30%rhodium－Platinum 6%rhodium | WRR | B | 0-1800 | ±1.5℃ or ±0.0025∣t∣ |
| Platinum 10%rhodium－platinum | WRP | S | 0-1600 | ±1.5℃ or ±0.0025∣t∣ |
| chromel－nisiloy | WRN | K | 0-1300 | ±2.5℃ or ±0.0075∣t∣ |
| chromel－copper nickel | WRE | E | 0-800 | ±2.5℃ or ±0.0075∣t∣ |
| Thermocouple type | model | graduation | Temp range oC |
Specs
|
Response time T0.5S | |
|
Dia
mm
|
Protection casing matertial | |||||
| Single PtRh30-PtRh6 | WRR-120 | B | 0~1600 | Φ16 | corundum | <150 |
| WRR-121 | Φ25 | <360 | ||||
| Double PtRh30-PtRh6 | WRR2-120 | Φ16 | <150 | |||
| WRR2-121 | Φ25 | <360 | ||||
| Single PtRh10-Pt | WRP-120 | S | 0~1300 | Φ16 | High alumium | <150 |
| WRP-121 | Φ25 | <360 | ||||
| Double PtRh10-Pt | WRP2-120 | Φ16 | <150 | |||
| WRP2-121 | Φ25 | <360 | ||||
| Single NiCr-NiSi | WRN-122 | K | 0~1100 | Φ16 | High alumium | <240 |
| WRN-123 | 0~1200 | Φ20 | ||||
| doubleNiCr-NiSi | WRN2-123 | 0~1100 | ||||
| Single PtRh30-PtRh6 | WRR-130 | B | 0~1600 | Φ16 | corundum | <150 |
| WRR-131 | Φ25 | <360 | ||||
| Double PtRh30-PtRh6 | WRR2-130 | Φ16 | <150 | |||
| WRR2-131 | Φ25 | <360 | ||||
| Single PtRh10-Pt | WRP-130 | S﹡ | 0~1300 | Φ16 | High alumium | <150 |
| WRP-131 | Φ25 | <360 | ||||
| Double PtRh10-Pt | WRP2-130 | Φ16 | <150 | |||
| WRP2-131 | Φ25 | <360 | ||||
| Single NiCr-NiSi | WRN-133 | K | 0~1200 | Φ30 | High alumium | <240 |
| double NiCr-NiSi | WRN2-133 | 0~1100 | ||||
|
016(single layer)
|
020
|
025(double -layer)
|
|||
|
total length L
|
Placed-depth l
|
total length L
|
placed-depth l
|
total length L
|
placed-depth l
|
|
300
|
150
|
400
|
250
|
550
|
400
|
|
350
|
200
|
450
|
300
|
650
|
500
|
|
400
|
250
|
550
|
400
|
900
|
750
|
|
450
|
300
|
650
|
500
|
1150
|
1000
|
|
550
|
400
|
900
|
750
|
1650
|
1500
|
|
650
|
500
|
1150
|
1000
|
2150
|
2000
|
|
900
|
750
|
1650
|
1500
|
||
|
1150
|
1000
|
2150
|
2000
|
||
