Microcomputer Digital Speed Indicator

Microcomputer Digital Speed Indicator

  • Microcomputer Digital Speed Indicator
  • Microcomputer Digital Speed Indicator
Microcomputer Digital Speed Indicator
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: SID-2SL-A
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: contact
Packaging Details: Carton box
Delivery Time: 10days
Payment Terms: T/T
Supply Ability: 500PCS / month
Contact Now
Detailed Product Description
Power Supply: From 85V To 265V AC/ DC Power Supply Measuring Accuracy: Frequency Of + 0.01Hz (35-65Hz), Angle, Voltage Of + - 1 DEG 1V (< 100V) Or + 1% (> 100V);
Storage Temperature: - 20 ~ 70 Degrees Work Environment:: Operating Temperature: 0 ~ 50 Degrees
Insulation Strength: Electromagnetic Loop To Ground Can Be Tolerated: 2000V.50Hz.1min.
High Light:

speed measuring instrument

,

digital panel indicator

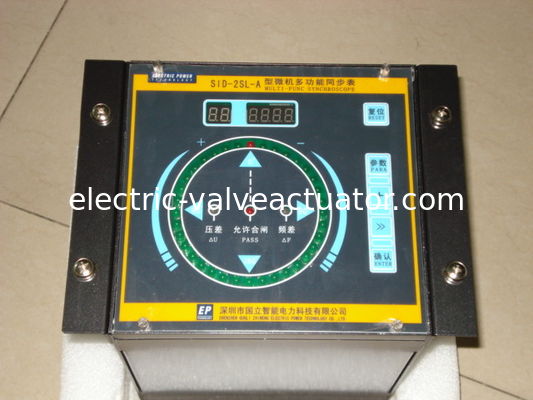

 Microcomputer Digital Speed Indicator SID - 2SL - A Multi - Functional Synchronization Meter








Main function :



1. SID-2SL-A available to offer 12 the same period point sharing.

2. The synchronous point phase difference,  a separate set of differential voltage compensation

3. The 12 period points are from 12 TJJ separate sets difference frequency synchronization and

same frequency synchronization lock angle

4. According to the results of the automatic identification of synchronizing device

switching locking angle setting

5. phase difference indicating lights and digital display.

6. frequency difference and pressure difference limit indicator light and digital display.

7. effective value of voltage and frequency of the digital display

8. from 85V to 265V AC/ DC power supply





Technical index



1.  Input device and the system side and side voltage can be adapted to AC10 ~ 264V range,

power consumption is not more than 0.5VA.

2.  Input switch (earlier point selection,  unilateral pressure closing confirmation,

bilateral pressure closing confirmation,  difference frequency / same frequency

synchronization type,  remote reset) are always idle contact,  "difference frequency /

same frequency synchronization category judgment" into the signal is switched on is defined

as the difference frequency synchronization

3.  Output synchronization locking contact capacity for 600VDC,  6A.

4.  Measuring accuracy: frequency of + 0.01Hz (35-65Hz),  angle,

voltage of + - 1 DEG 1V (< 100V) or + 1% (> 100V);

5.  Working power supply from 110 to 220V DC power supply,  power consumption is not more than 10VA.

6.  Insulation strength: electromagnetic loop to ground can be tolerated: 2000V.50Hz.1min.

7.  Work environment: operating temperature: 0 ~ 50 degrees

                   Storage temperature: - 20 ~ 70 degrees

                   Relative humidity: not more than 90%


                            Microcomputer Digital Speed Indicator 0
