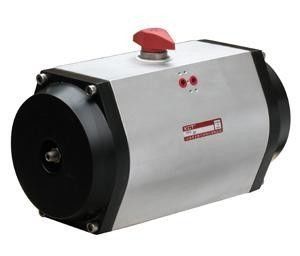

Double Acting Pneumatic Electric Valve Actuator GT127 High Precision

Double Acting Pneumatic Electric Valve Actuator GT127 High Precision

  • Double Acting Pneumatic Electric Valve Actuator GT127 High Precision
  • Double Acting Pneumatic Electric Valve Actuator GT127 High Precision
  • Double Acting Pneumatic Electric Valve Actuator GT127 High Precision
Double Acting Pneumatic Electric Valve Actuator GT127 High Precision
Product Details:
Place of Origin: China
Model Number: GT127
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Brand Name: OEM Acting: Single Acting And Double Acting.
Pneumatic Actuators: AT/GT Series Pneumatic Actuators Cylinder Block: High-quality Aluminum Alloy Cylinder Block
High Light:

electro hydraulic actuator

,

electro hydraulic machinery





Double Acting Pneumatic Electric Valve Actuator GT127 High Precision





Pneumatic Device GT127 double acting Pneumatic Actuator



1.single acting and double acting.
2.long service life.
3.high quality and reasonable price.





AT/GT series pneumatic actuators.DA and SR pneumatic actuators are design to work with Butterfly Valves and Ball Valves.



1. dual piston rack and pinion design of symmetric structures,rapid and smooth movement,high precision,high output power,by simply changing the position of the piston assembly against the direction of rotation available.
2. Extrusion of high-quality aluminum alloy cylinder block,by the precision machining of the inner hole and outer surface of hard anodized(anodic oxidation under special circumstances+ coating),longer life,low friction coefficient.
3. Integrated design,all the dual role and one role of the actuator models have the same cylinder and end caps,easily removed by installing a spring or spring to change the mode of action.
4. Combined pre-safe spring group,both in the assembiy process or use on-site in both convenient and safe to install or    change the number of spring.



Double action :
Double Acting Pneumatic Electric Valve Actuator GT127 High Precision 0


item

Output torque (N.m)

0.4MPa

0.5MPa

0.6MPa

0.7MPa

GT52

15.6

19.5

23.4

27.3

GT63

23.2

29

34.8

40.6

GT83

56

70

84

98

GT110

112.8

141

169.2

197.4

GT127

220

275

320

385

GT160

440

550

660

770

GT190

734

917

1101

1284

GT210

948

1185

1422

1659

GT254

1740

2175

2610

3045



Size  mm



thread

Type

A

B

C

D

ΦE

ΦF

ΦG

ΦH

I

ΦJ

□K

L

M

N

O

P

Q

R×Q

ΦS

T

U

NA
=20

NA
=30

90°

120°

180°

GT52

50

59

74

94

104

12

12

ISO

FO3
Φ36

ISO

FO5
Φ50

M5×8

23.8

CH.11

125

146

191

CH.10

80

M6×10

2

18

812

12

40

114

1/8"G

GT63

60

70

88

108

118

12

12

ISO

 FO5
Φ50

ISO

FO7
Φ70

M6×10

23.8

CH.14

140

151

196

CH.10

80

M8×13

2

18

1015

16

40

128

1/8"G

GT83

65

91

108

128

138

14

18

ISO

F05
Φ50

ISO

FO7
Φ70

M6×10

32.3

CH.17

182

207

270

CH.10

80

M8×13

2

19

1015

16

40

148

1/8"G

GT110

90

120

140

160

170

19.5

25

ISO

 FO7
Φ70

ISO

 F10
Φ102

M8×13

40.3

CH.22

222

252

323

CH.14

80

M10×16

2.5

24.5

1422

22

40

180

NAMR
1/4"G

GT127

103

137

160

180

190

28

40

ISO

FO7
Φ70

ISO

 F10
Φ102

M8×13

53.3

CH.22

284

350

450

CH.20

80

M10×16

3

25

2025

30

40

200

NAMR
1/4"G

GT160

110

172

198



228

36

40

ISO

F10
Φ102

ISO

F12
Φ125

M10×16

66.3

CH.27

378

442

568

CH.28

130

M12×20

3

29

2830

42

50

248

NAMR
1/4"G

GT190

125

224

255



285

47

60



ISO

F14
Φ140



79.3

CH.36

412

485

632

CH.32

130

M16×25

4

40

3234

48

50

305

NAMR
1/4"G

GT210

135

224

255



285

47

60



ISO

F14
Φ140



79.3

CH.36

452

526

676

CH.32

130

M16×25

4

40

3234

48

50

305

NAMR
1/4"G

GT254

159

272

302



332

47

60



ISO

F14
Φ140



105.3

CH.46

603

705

905

CH.32

130

M20×28

4

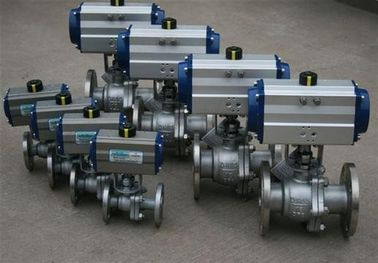

Double Acting Pneumatic Electric Valve Actuator GT127 High Precision 1

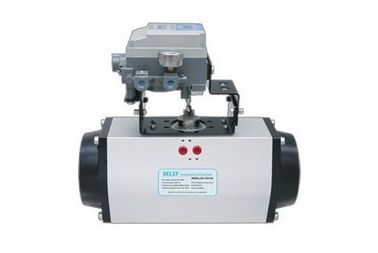

Double Acting Pneumatic Electric Valve Actuator GT127 High Precision 2
