Place of Origin: | China |
Brand Name: | OEM |
Model Number: | XDH-20L |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box packing |
Payment Terms: | T/T |
Applications: | Electric Power, Metallurgical, Petrochemical System,Can Be Directly Used For Firing Natural Gas, Liq | Specifications: | XDH -20C, 2500V , 20J , AC220V , IP55 |
---|---|---|---|
Temperature: | -30~70℃ | Elative Humidity (RH): | ≤90% RH |
High Light: | performance ignition system,high energy ignition device |

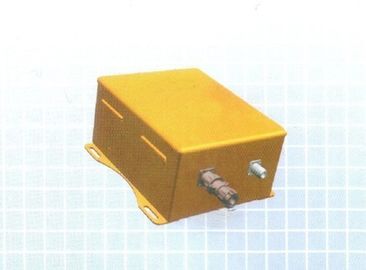

AC220V High Performance Ignition System , High Energy Igniter XDH - 20C For Metallurgy
1. Ignition system for power plant
2. Boiler ignition
3. ignition rod and cable
1,Using electric energy in the torch head of ignition gun to make out high energy electric spark,it can directly ignited natural gas,liquefied petroleum gas and atomized kerosene, diesel, heavy oil, residual oil and other liquid fuel.
2,- High energy ignition device belongs to the low voltage capacitor discharge device, low voltage, large spark energy.- Shape has the advantages of small volume, convenient operation- Safe and reliable, corrosion-resistant, resistant capability.
Applications:
Widely used in electric power, metallurgical, petrochemical system,Can be directly used for firing natural gas, liquefied petroleum gas, kerosene, diesel oil, heavy oil, residual oil and other.
Specifications:
XDH -20C, 2500V , 20J , AC220V , IP55
Sr. no. |
Model |
Description |
1 |
XDH-50(c) |
Store energy 50J,Stamping shell |
2 |
XDH -20L(Can link) |
Store energy 20J,98 Cast aluminum shell |
3 |
XDH -20W(Can link) |
Store energy 20J,05 Cast aluminum shell |
4 |
XDH -20C(Can link) |
Store energy 20J,Stamping shell |
5 |
XDH -20B(Can link) |
Store energy 20J,explosion-proof shell |
6 |
XDH -20T(Can link) |
Store energy 20J,Portable shell |
7 |
XDH -6L(Can link) |
Store energy 6J,Cast aluminum shell |
8 |
XDH -6B(Can link) |
Store energy 6J,explosion-proof shell |
9 |
XDH -2Z(Can link) |
Store energy 2J,Charging DC portable shell |
10 |
XDH -1G(Can link) |
Store energy 1J,High voltage gap ignition |
【Note 】if user demand some other type except above types , OEM can special design according user details .
Working environment
Parameter name |
Unit |
Data |
Temperature |
℃ |
-30~70 |
relative humidity (RH) |
% RH |
≤90 |
