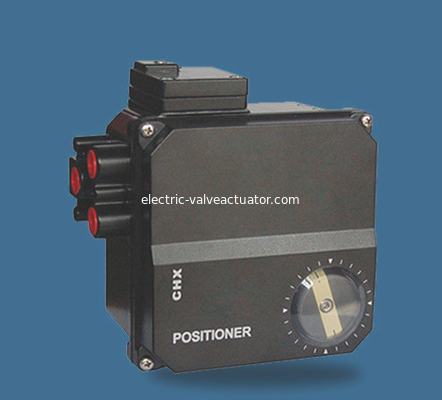

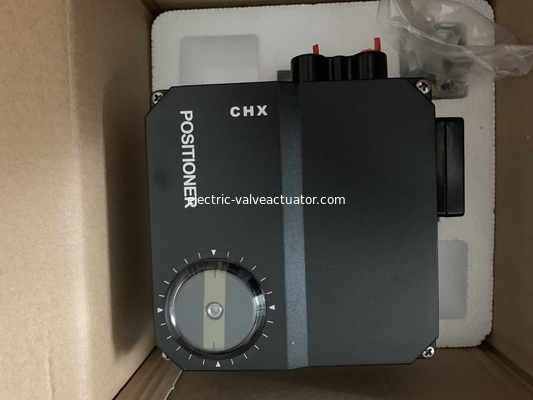

20mA DC Electrical Valve Positioner IP66 CHX-724 Aluminum Alloy

20mA DC Electrical Valve Positioner IP66 CHX-724 Aluminum Alloy

  • 20mA DC Electrical Valve Positioner IP66 CHX-724 Aluminum Alloy
  • 20mA DC Electrical Valve Positioner IP66 CHX-724 Aluminum Alloy
  • 20mA DC Electrical Valve Positioner IP66 CHX-724 Aluminum Alloy
20mA DC Electrical Valve Positioner IP66 CHX-724 Aluminum Alloy
Product Details:
Place of Origin: China
Brand Name: CHX
Model Number: positioner
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Input Signal: 4~20mA DC Impedance: 250±15Ω
Protection: IP66 Explosion Proof: Exia BT6,Exdm BT6,Exdm CT6
Material: Aluminum Alloy Stroke: 10~150mm 0~90°
High Light:

20mA DC Electrical Valve Positioner

,

IP66 Electrical Valve Positioner

,

Aluminum Alloy Electro Pneumatic Positioner

Electrical Valve Positioner NE724/SI CHX positioner CHX-724 ELECTRO-PNEUMATIC POSITIONER



Chx700 electric valve positioner converts the 4-20mA DC signal from the regulator or computer IO port into aerodynamic force, and drives the regulating valve through single acting or double acting cylinder to realize angular displacement or linear displacement. The closed-loop control is realized through the cam feedback system, so that the regulating valve can achieve accurate angular displacement or linear displacement proportional to the input signal.

- standard input signal 4 ~ 20 mA DC 0 ~ 20 mA DC

- split range 4 ~ 12 Ma DC 12 ~ 20 mA DC

- input impedance 220 Ω± 10 Ω

- Maximum feedback angle 95 °

- straight stroke 20-140mm

- positive and negative reaction of control direction

- linear relationship between stroke and signal

- gas supply pressure 0.14 ~ 0.8MPa

- influence of air supply pressure < 0.2% / 10KPA

- ambient temperature - 25 ~ + 85 ℃

- influence of ambient temperature ≤ 0.05% ℃

- protection grade IP54

- gas consumption 0.5m3n/h

Servo slide valve matched with actuator φ 4, φ six

Performance when the actuator load is relatively stable:

- dead band ≤ 0.4%

- hysteresis < 0.7%

- linearity <± 1%

Vibration influence (1.5g – 100Hz) ≤ 1%

The shell of the structural material is aluminum alloy with glutamic acid treatment and electrostatic powder spraying coating on the outer surface, the cover is polycarbonate, and the internal parts are stainless steel and aluminum alloy, which are corrosion-resistant materials and subject to surface technical treatment.

Incoming interface G1 / 2 or M20 × one point five

Applicable cable φ 5 – φ ten

Air pipe interface ZG 1 / 4 "

Weight: about 2.3kg
