Name: PN1.6 Two Way Piston Angle Seat Valve SS316L Auto Drain Valve
Brand: Shanghai Riyi
SKU: RPT-16B-04
Rating: 5 (179 reviews)

Home Products Power Station Valve

PN1.6 Two Way Piston Angle Seat Valve SS316L Auto Drain Valve

Product Details:

Place of Origin:	China
Brand Name:	Shanghai Riyi
Model Number:	RPT-16B-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Payment Terms:	T/T
Supply Ability:	200

Contact Now

Detailed Product Description

Brand:	Shanghai Riyi	Model:	RPK21N-32B
Connection:	Fast Connection , Flang , Inner Thread	DN:	DN15~100MM
Pressure:	PN1.6 , 2.5MPA	Material:	304 /316/316L
High Light:	PN1.6 Angle Seat Valve , Two Way Piston Angle Seat Valve , SS316L Auto Drain Valve

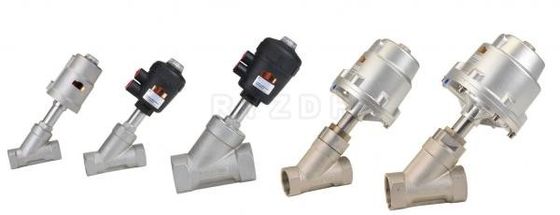

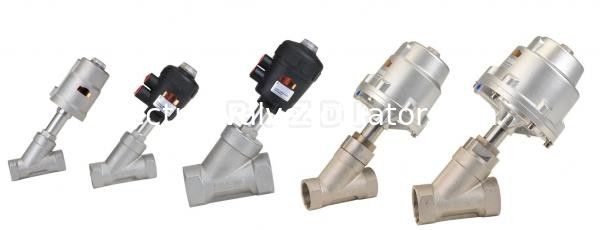

Two-position Two-way Piston Type Angle Seat Valve RPK21 Shanghai Riyi Automation RYZDH drain valve

TWO-POSITION TWO-WAY PISTON TYPE ANGLE SEAT VALVEDETAILS

Feature:

● With an on/off position indicator.
● External air pilot enhance cycle life. No leakage
and maintenance free up to five million cycles.
● The seal retainer situated between the exhaust
port and the piston self-adjusts the squeeze of the
seal to enhance the sealing integrity.
● Compared with regular poppet valve. The angled
seat construction offers high flow. Compact structure
and fastrese.
● Sealing Material: durable Parker seals and
V-packing rings.
● Valve Body Material: Bronze or Stainless Steel.
● Control Air: Compressed air.
