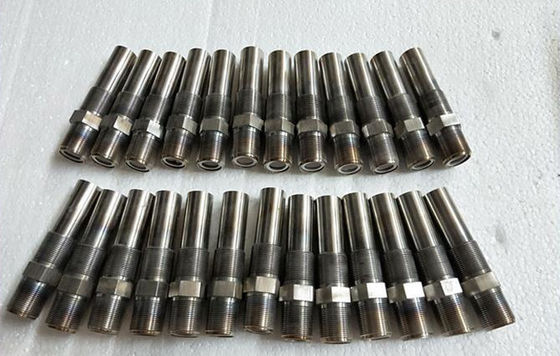

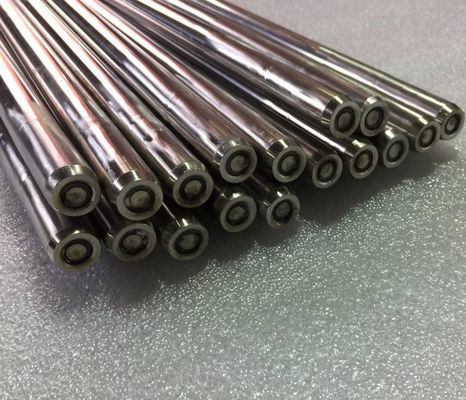

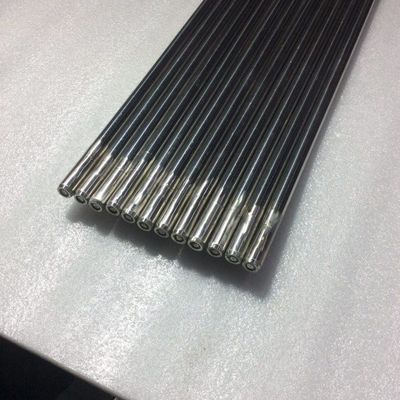

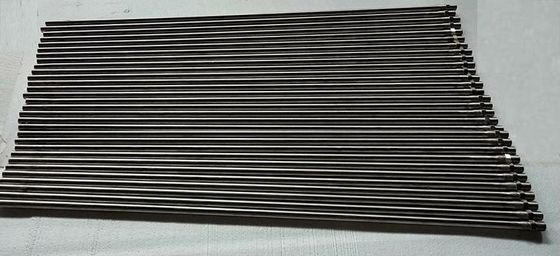

High Performance Ignition Rod Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod

High Performance Ignition Rod Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod

  • High Performance Ignition Rod  Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod
  • High Performance Ignition Rod  Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod
  • High Performance Ignition Rod  Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod
  • High Performance Ignition Rod  Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod
High Performance Ignition Rod  Φ12、Φ16、Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: XDZ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Payment Terms: T/T
Supply Ability: 200
Contact Now
Detailed Product Description
Voltage: 2500V Energy: 20J
Spark Frequence: 12-14times /S Frame Size: 300*200*120
Thread: M18*1.0 M18*1.5 M27*1.5 Temperature: 1300℃
Rod Dia: Φ12、Φ16、Φ18



High Performance Ignition rod Φ12,Φ16,Φ18 ignition gun spark gap , rigid rod , spark rod







  1. Applications:


    As XDH high-energy ignition device assembly.



  1. Specifications:



Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge

in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage;
- Good temperature resistance;
- Safety and reliability,  strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.




Product model and series

1. Product series

Sr.

Model

Description

1

XDH-1G

High pressure gap ignitor

2

XDH-2Z

DC charging portable ignition

3

XDH-6B

explosion-proof high-energy ignition

4

XDH-6L

Portable high-energy ignition

5

XDH-12T

Portable high-energy ignition

6

XDH-20B

explosion-proof high-energy ignition

7

XDH-20C

high-energy ignition

8

XDH-20L

high-energy ignition

9

XDH-50

high-energy ignition

【Note】As the series of products still cannot meet the requirements of users,

according to the demand of design.



1. basic configuration:(leave)

2. Performance parameters



Various types of igniter performance:

Parameter name

Unit

Data

NDH-2Z
ignition

NDH-6 series ignition

XDH- 20

series ignition

XDH-50
ignition

Energy storage

J

2

10

20

50

Working voltage

V

DC12

AC220

Output voltage

VDC



2500±5%

Spark frequency

(Times / sec)

1~3

2~10 Adjustable

7~17

2~10  Adjustable

Duty cycle (on / off)

S

30/60

120/60

300/60

120/60



3. Outline and mounting dimensions   pls contact to confirm





1,Product Description:

use from ignition cable input voltage DC discharge in high energy electric spark forming head

2,Technical advantages and honor

- Low ignition voltage;

- Good temperature resistance;

- Safety and reliability, strong ability to resist pollution
