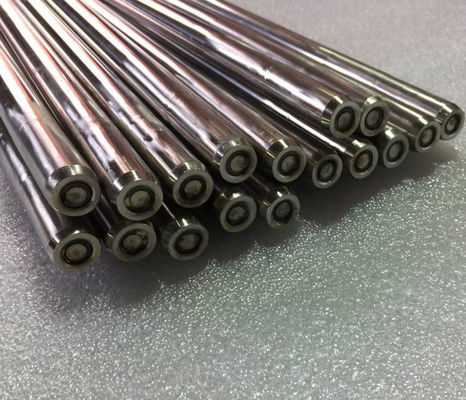

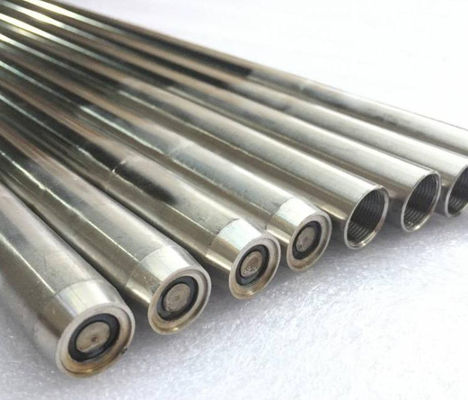

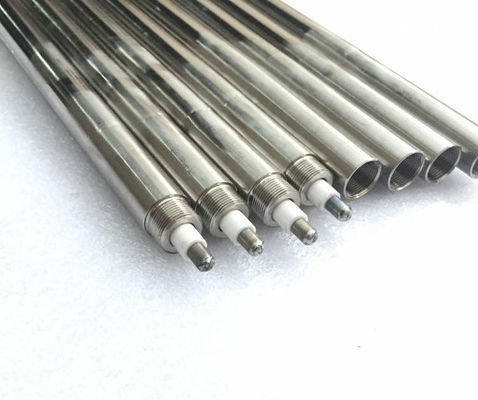

High-Energy Ignition rod spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18

High-Energy Ignition rod spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18

  • High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18
  • High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18
  • High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18
High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: XDZ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Payment Terms: T/T
Supply Ability: 200
Contact Now
Detailed Product Description
Voltage: 2500V Energy: 20J
Spark Frequence: 12-14times /S Frame Size: 300*200*120
Ignition Rod: M18*1.0 M18*1.5 M27*1.5 Temperature: 1300℃
Rod Dia: Φ16 Φ18

High-Energy Ignition rod spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18



1. Product series

Sr. Model Description
1 XDZ-1-l/d Standard type hard rod high energy ignition gun
2 XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun
3 XDZ-1-l/d K Standard type hard gun handle high energy ignition gun
4 XDZ-1R-l/d Standard type soft rod high energy ignition gun
5 XDZ-1R-l/d B Standard type soft rod explosion-proof high-energy igniting gun
6 XDZ-2-l/d Non standard hard rod high energy ignition gun
7 XDZ-2-l/d B Non standard hard rod explosion-proof high-energy igniting gun
8 XDZ-2R-l/d Non standard soft rod high energy ignition gun
9 XDZ-2R-l/d B Non standard soft rod explosion-proof high-energy igniting gun
10 XDZ-3-l/d Special electric nozzle high-energy igniting gun
11 XDZ-3-l/d B Explosion proof special electric nozzle high-energy igniting gun
12 XDZ-4-l/d B The hard rod high clearance point guns

【Note 】
①In the table type codelis igniting gun length, in order to unit mm;
②In the table d is igniting gun diameter ,there are 14mm,16mm,18mm series to choose;
③ according user demanding to special design and produce.


1. basic configuration:(leave)

2. Performance parameters

Various types of ignition performance parameters:

Parameter name Unit Data
Starting ignition voltage VDC 600~1400
center electrode resistance Ω ≤0.1
firing end long-term temperature ≤800
firing end short-time (<5min) temperature resistance 1250




3. Outline and mounting dimensions




High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 0
Drawing 3-1,XDZ-1- l/18 Standard type hard rod high energy ignition gun(L≤1000mm)



High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 1
Drawing 3-2,XDZ-1-l/18 Standard type hard rod high energy ignition gun(L>1000mm)


High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 2
Drawing 3-3,XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun



High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 3
Drawing 3-4,XDZ-1- l/18 K Standard type hard gun handle high energy ignition gun



High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 4
Drawing 3-5,XDZ-1R-l/18 Standard type soft rod high energy ignition gun



High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 5
3-6,XDZ-3 Catalytic plug ignition gun



High-Energy Ignition rod  spark gun AC220V Power plant boiler savingenergy ignition high energy igniter M18 6
Drawing 3-7,XDZ-4-l/d hard rod high pressure gap ignition gun
