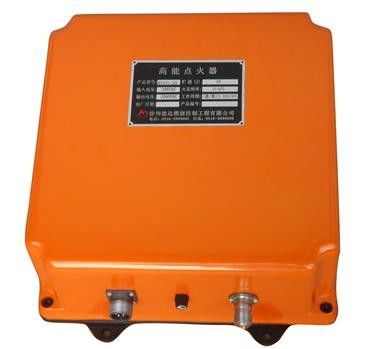

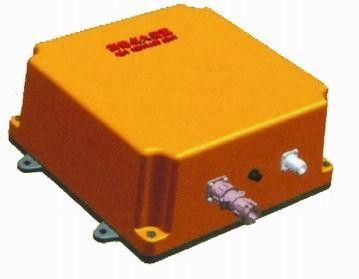

XDH Series XDH-20C High-Energy Ignition Device Low Ignition Voltage Good Temperature Resistance

Brand Name:	OEM
Model Number:	XDH-20D
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

China

Voltage:

220V±10% 50/60HZ

Energy:

20J

Spark Frequence:

12-14times /S

Frame Size:

300*200*120

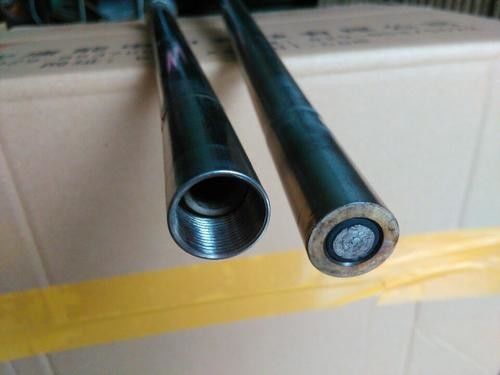

Ignition Rod:

M18*1.0 M18*1.5 M27*1.5

Temperature:

1300℃

Rod Dia:

Φ16 Φ18

Packaging Details:

Wooden box packing

Supply Ability:

200

Highlight:

High-Energy Ignition Device for sale

Low Voltage High-Energy Ignition Device

Product Description

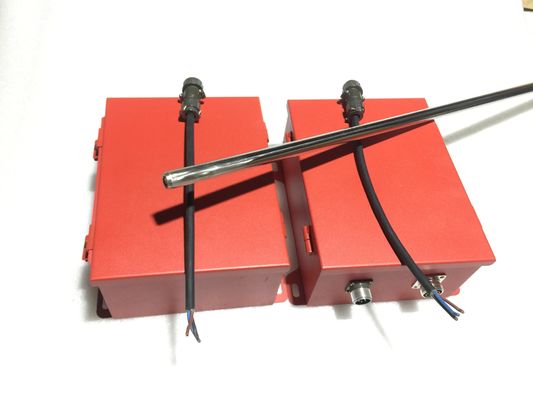

XDH series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 ignite rod spark rod high voltage cable

Applications:

As XDH high-energy ignition device assembly.

Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage；
- Good temperature resistance；
- Safety and reliability, strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

Product model and series

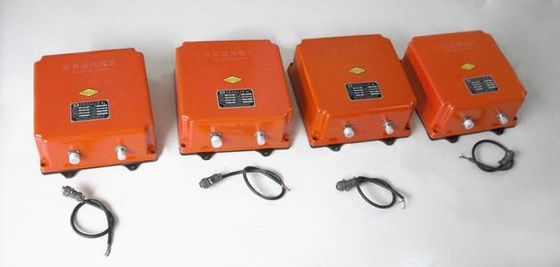

1. Product series

Sr.	Model	Description
1	XDH-1G	High pressure gap ignitor
2	XDH-2Z	DC charging portable ignition
3	XDH-6B	explosion-proof high-energy ignition
4	XDH-6L	Portable high-energy ignition
5	XDH-12T	Portable high-energy ignition
6	XDH-20B	explosion-proof high-energy ignition
7	XDH-20C	high-energy ignition
8	XDH-20L	high-energy ignition
9	XDH-50	high-energy ignition

【Note】As the series of products still cannot meet the requirements of users, according to the demand of design.

1. basic configuration:(leave)

2. Performance parameters

Various types of igniter performance:

Parameter name	Unit	Data
Parameter name	Unit	NDH-2Z ignition	NDH-6 series ignition	XDH- 20 series ignition	XDH-50 ignition
Energy storage	J	2	10	20	50
Working voltage	V	DC12	AC220
Output voltage	VDC		2500±5％
Spark frequency	(Times / sec)	1～3	2～10 Adjustable	7～17	2～10 Adjustable
Duty cycle (on / off)	S	30/60	120/60	300/60	120/60

3. Outline and mounting dimensions pls contact to confirm
