Auto High Performance Ignition System for for Tig Welding

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	XDZ series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Payment Terms:	T/T
Supply Ability:	500

Contact Now

Detailed Product Description

High Light:

Spark Plug Wire

performance ignition system

Auto High Performance Ignition System for for Tig Welding

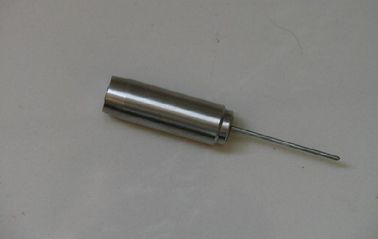

Standard type soft rod explosion proof high energy igniting gun XDZ-1R-l/d B 600 ～ 1400V High energy ignition device

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.

2,Technical advantages and honor- Low ignition voltage；- Good temperature resistance；- Safety and reliability, strong ability to resist pollution.

Applications:

As XDH high-energy ignition device assembly.

Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage；
- Good temperature resistance；
- Safety and reliability, strong ability to resist pollution

3,Applications:

As XDH high-energy ignition device assembly.

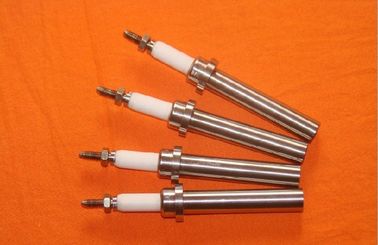

Product model and series

1. Product series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

【Note 】
①In the table type codelis igniting gun length, in order to unit mm；
②In the table d is igniting gun diameter ,there are 14mm,16mm,18mm series to choose；
③ according user demanding to special design and produce.

1. basic configuration:(leave)

2. Performance parameters

Various types of ignition performance parameters:

Parameter name	Unit	Data
Starting ignition voltage	VDC	600～1400
center electrode resistance	Ω	≤0.1
firing end long-term temperature	℃	≤800
firing end short-time (<5min) temperature resistance	℃	1250

3. Outline and mounting dimensions

Auto High Performance Ignition System for for Tig Welding 0
Drawing 3-1,XDZ-1- l／18 Standard type hard rod high energy ignition gun(L≤1000mm)

Drawing 3-2,XDZ-1-l／18 Standard type hard rod high energy ignition gun(L＞1000mm)

Auto High Performance Ignition System for for Tig Welding 2
Drawing 3-3,XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun

Drawing 3-4,XDZ-1- l／18 K Standard type hard gun handle high energy ignition gun

Auto High Performance Ignition System for for Tig Welding 4
Drawing 3-5,XDZ-1R-l／18 Standard type soft rod high energy ignition gun

3-6,XDZ-3 Catalytic plug ignition gun

Drawing 3-7,XDZ-4-l／d hard rod high pressure gap ignition gun
