Brand Name: | OEM |
Model Number: | XDH series |
MOQ: | 1 set |
Payment Terms: | T/T |
Convenient Operation Ignition System for all Vehicle
Specifications
High energy ignition device
1,low voltage
2,large spark energy
3,small volume
4,corrosion-resistant
1,Using electric energy in the torch head of ignition gun to make out high energy electric spark,it can directly ignited natural gas,liquefied petroleum gas and atomized kerosene, diesel, heavy oil, residual oil and other liquid fuel.
2,- High energy ignition device belongs to the low voltage capacitor discharge device, low voltage, large spark energy.- Shape has the advantages of small volume, convenient operation- Safe and reliable, corrosion-resistant, resistant capability.
Applications:
Widely used in electric power, metallurgical, petrochemical system,Can be directly used for firing natural gas, liquefied petroleum gas, kerosene, diesel oil, heavy oil, residual oil and other.
Specifications:
Sr. no. |
Model |
Description |
1 |
XDH-50(c) |
Store energy 50J,Stamping shell |
2 |
XDH -20L(Can link) |
Store energy 20J,98 Cast aluminum shell |
3 |
XDH -20W(Can link) |
Store energy 20J,05 Cast aluminum shell |
4 |
XDH -20C(Can link) |
Store energy 20J,Stamping shell |
5 |
XDH -20B(Can link) |
Store energy 20J,explosion-proof shell |
6 |
XDH -20T(Can link) |
Store energy 20J,Portable shell |
7 |
XDH -6L(Can link) |
Store energy 6J,Cast aluminum shell |
8 |
XDH -6B(Can link) |
Store energy 6J,explosion-proof shell |
9 |
XDH -2Z(Can link) |
Store energy 2J,Charging DC portable shell |
10 |
XDH -1G(Can link) |
Store energy 1J,High voltage gap ignition |
【Note 】if user demand some other type except above types , OEM can special design according user details .
2. basic configuration:
Sr. |
Model |
configure |
Description |
1 |
XDZ ignition gun |
Standard |
|
2 |
XDH hea box |
Standard |
|
3 |
XDL ignition cable |
Standard |
|
3. Performance parameters
Sr. |
Model |
Performance parameters |
Description |
1 |
XDZ ignition gun |
See table |
|
2 |
XDH hea box |
See table |
|
3 |
XDL ignition cable |
See table |
|
Working environment
Parameter name |
Unit |
Data |
Temperature |
℃ |
-30~70 |
relative humidity (RH) |
% RH |
≤90 |

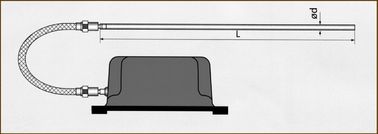

4. Outline and mounting dimensions
Sr. |
Model |
Dimensions |
Description |
1 |
NDZ ignition gun |
See table |
|
2 |
NDH hea box |
See table |
|
3 |
NDL ignition cable |
See table |
|
