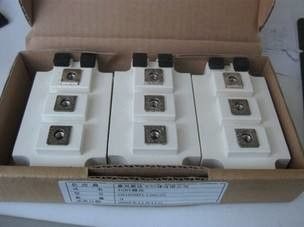

STARPOWER IGBT Power Module GD300HFL120C2S 1200V / 300A Molding Type Durable

STARPOWER IGBT Power Module GD300HFL120C2S 1200V / 300A Molding Type Durable

  • STARPOWER IGBT Power Module GD300HFL120C2S 1200V / 300A Molding Type Durable
  • STARPOWER IGBT Power Module GD300HFL120C2S 1200V / 300A Molding Type Durable
STARPOWER IGBT Power Module GD300HFL120C2S 1200V / 300A Molding Type Durable
Product Details:
Place of Origin: China
Brand Name: STARPOWER
Model Number: GD300HFL120C2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 25 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Features: 10μs Short Circuit Capability VCES: 1200V
IC Nom: 300A ICRM: 600A
Applications: AC And DC Servo Drive Amplifier
High Light:

high power igbt module

,

automotive igbt

STARPOWER IGBT POWER Module GD300HFL120C2S ,1200V /300A Molding Type Module



Molding Type Module

1200V/300A 2 in one-package

General Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

Low VCE(sat) SPT+ IGBT technology

10μs short circuit capability

VCE(sat) with positive temperature coefficient

Low inductance case

Fast & soft reverse recovery anti-parallel FWD

Isolated copper baseplate using DBC technology



Typical Applications

Inverter for motor drive

AC and DC servo drive amplifier

Uninterruptible power supply





STARPOWER IGBT Power Module GD300HFL120C2S 1200V / 300A Molding Type Durable 0
