| Place of Origin: | China |
| Brand Name: | STARPOWER |
| Model Number: | GD150HFL120C2S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 25 days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |
| Features: | 10μs Short Circuit Capability | VCES: | 1200V |
|---|---|---|---|
| IC Nom: | 1200A | ICRM: | 2400A |
| Typical Applications: | AC And DC Servo Drive Amplifier | ||
| High Light: | high power igbt module,automotive igbt |
||

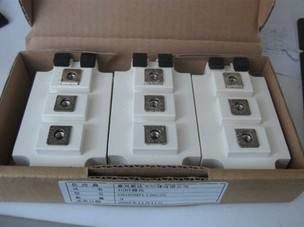

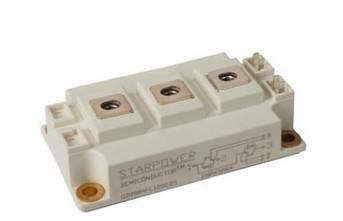

STARPOWER IGBT POWER Module GD150HFL120C2S GD200HFL120C8S Molding Type Module
Molding Type Module
1200V/200A 2 in one-package
General Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.
They are designed for the applications such as general inverters and UPS.
Features
Low VCE(sat) SPT+ IGBT technology
10μs short circuit capability
VCE(sat) with positive temperature coefficient
Low inductance case
Fast & soft reverse recovery anti-parallel FWD
Isolated copper baseplate using DBC technology
Typical Applications
Inverter for motor drive
AC and DC servo drive amplifier
Uninterruptible power supply
Contact Person: Ms. Biona
Tel: 86-755-83014873
Fax: 86-755-83047632
