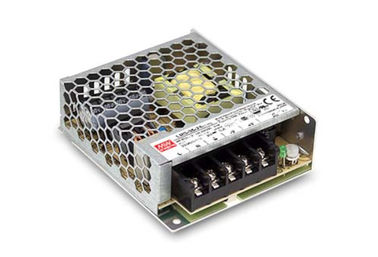

100W Single Output Switching Power Supply , mean well AC/DC enclosed power supply .
Features :
Description
LRS-35 series is a 35W signle-output enclosed type power supply with 30mm of low profile design , adopting the full range 85-264VAC input , the entire series provides an output voltage line of 5V ,12V , 15V , 24V , 36V and 48V .
In addition to the high efficiency up to 89% , the design of metallic mesh case enhances the heat dissipation of LRS-35 that the whole series operates from -30℃ through 70℃ under air convection without a fan . Delivering an extremely low no load power consumption ( less than 0.2W) , it allows the end system to easily meet the worldwide energy requirement . LRS-35 has the complete protection functions and 5G anti-vibration capablikty . it is complied with the international safety regulations such as TUV EN60950-1 , EN60335-1 , EN61558-1/2-16 , UL60950-1 and GB4943 . LRS-35 sereis serves as high price to performance power supply solution for various industrial applications .
| Model | LRS-35-5 | LRS-35-12 | LRS-35-15 | LRS-35-24 | LRS-35-36 | LRS-35-48 |
| Dc output voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated output current | 7A | 3A | 2.4A | 1.5A | 1A | 0.8A |
| Output current rage | 0-7A | 0-3A | 0-2.4A | 0-1.5A | 0-1A | 0-0.8A |
| Rated Power | 35W | 36W | 36W | 36W | 36W | 38.4W |
| Wave and noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p |
| Voltage ADJ. range | 4.5-5.5V | 10.2-13.8V | 13.5-18V | 21.6-28.8V | 32.4-39.6V | 43.2-52.8V |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 82% | 86% | 86% | 88% | 88% | 89% |
| AC input voltage range | AC85~264V 47~63Hz;120~373VDC | |||||
| Input current | 0.7A/115V 0.42A/230V | |||||
| AC INnrush current | Cold-start 45A/230V | |||||
| Overload proctection | 110%~150% Potection type: Hiccp mode,recobers automatically after condition is recoverd | |||||
| Over-voltage protection | 5.75-6.9V | 13.8-16.2V | 18.75-21.75V | 28.8-33.6V | 41.4-48.6V | 55.2-64.8V |
| Potection type :Shut down o/p voltage,re-power on to recover | ||||||
| Setup rise time | 1000ms,30ms/230VAC 2000ms,30ms/115VAC at full lod | |||||
| Hold up time | 30ms/230VAC ,12ms/115VAC at full lod | |||||
| Withstand voltage | I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC | |||||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH | |||||
| Working temperature | -30°C~+70°C | |||||
| Overall dimension | 99*82*30mm | |||||
| Safety standards | Meet ULGB4943 UL60950 EN60950 | |||||
| EMC standards | Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B | |||||
| Weight | 0.23Kgs |
|||||
Mechanical specification ( In mm)
