Explosion Proof Electric Actuator Ball Valve 380v

Name: Explosion Proof Electric Actuator Ball Valve 380v
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: IMT series
Price: 285.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	IMT series
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	200sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Wooden box packing

Supply Ability:

200sets

Highlight:

electromagnetic brakes

electro hydraulic machinery

Product Description

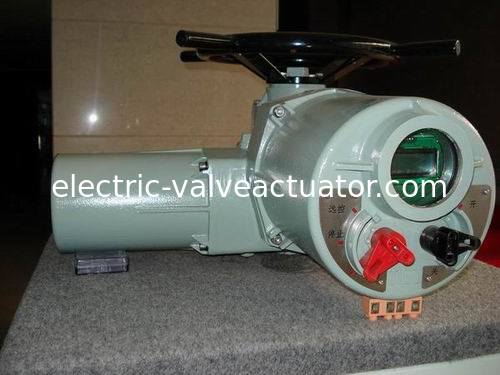

Explosion Proof Electric Actuator Ball Valve 380v

Explosion proof ExdIIBT4 IMT04/M/H2BC, IMT04/M/H3BC electric actuator ball valve 380v

IMT series is the new product with intellectual property that TET developed independently in collaboration with a renowned university. TET introduced Limitorque technology and manufactures the SMC series.

Specifications

Ambient temperature: -20°C to 55°C
Relative humidity: < 90% (25°C)
Sea level height: < 1000 meters
Working circumstance: Without flammable, explosive, corrosive medium
Protection Grade: IP65-IP67
Power supply: 380V, 50Hz
Explosion proof Grade: ExdIIBT4, ExdII CT4, ExdII CT6

IMT/M/HBC Series Technical Data - Turn Value Actuator

Machine Code	Model	Max. Torque	Output Speed	Motor Power	Motor Current	Travel Time
IMT04/M/H2BC	MT04/M/H2-30-0.4	3000	0.4	0.3	10	38
	MT04/M/H2-30-0.2	3000	0.2	0.2	8	75
IMT04/M/H3BC	MT04/M/H3-75-0.13	7500	0.13	0.3	10	115
	MT04/M/H3-65-0.1	6500	0.1	0.2	8	150
IMT-03/M/H3BC	MT-03/M/H3-78-0.4	7800	0.4	0.6	23	38
	MT-03/M/H3-78-0.2	7800	0.2	0.3	10	75
IMT-03/M/H4BC	MT-03/M/H4-140-0.2	14000	0.2	0.6	23	75
	MT-03/M/H4-175-0.14	17500	0.14	0.6	23	107
	MT-03/M/H4-175-0.08	17500	0.08	0.4	13	188
IMT-03/M/H5BC	MT-03/M/H5-240-0.15	24000	0.15	0.6	26	100
	MT-03/M/H5-240-0.08	24000	0.08	0.4	13	188
IMT-00/M/H5BC	IMT-00/M/H5-250-0.25	25000	0.25	1.1	25	60
	IMT-00/M/H5-270-0.2	27000	0.2	1.1	25	75
IMT-0/M/H6C	IMT-0/M/H6-630-0.12	63000	0.12	1.5	31	125
	IMT-0/M/H6-630-0.1	63000	0.1	1.1	25	150
