CHX（EP）-724AH Electric Valve Positioner

Name: CHX（EP）-724AH Electric Valve Positioner
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: NE724/S1
Price: 210.00 USD
Availability: InStock

Brand Name:	CHX
Model Number:	NE724/S1
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	1000sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Type::

NE724/S1

Usage:

VALVE POSITIONER

Packaging Details:

Wooden box packing

Supply Ability:

1000sets

Highlight:

NE724/S1 electric valve positioner

CHX electric valve positioner

Product Description

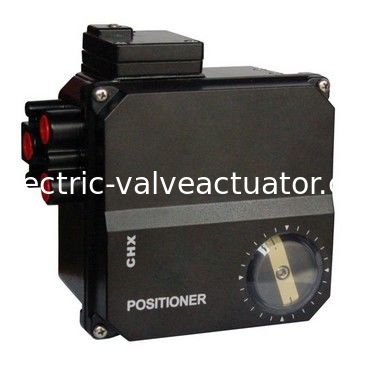

CHX(EP)-724AH Electric Valve Positioner

Product Overview

The CHX(EP)-724AH electric valve positioner converts 4-20 mA DC signals from regulators or computer I/O ports into pneumatic force, driving regulating valves via single or double-acting cylinders to achieve precise angular or linear displacement. Through a cam feedback system, it enables closed-loop control for accurate proportional positioning.

Technical Specifications

Parameter	Specification
Standard Input Signal	4~20 mA DC, 0~20 mA DC
Input Range	4~12 mA DC, 12~20 mA DC
Input Impedance	220Ω ±10Ω
Feedback Angle	95°
Linear Travel	20-140 mm
Control Direction	Positive and Counterproductive
Supply Pressure	0.14~0.8 MPa
Pressure Effect	<0.2%/10 kPa on supply
Ambient Temperature	-25~85℃ (≤0.05%/℃)
Protection Class	IP54
Air Consumption	0.5 m³N/h

Performance Characteristics

Dead Zone: ≤ 0.4%
Hysteresis: < 0.7%
Linearity: < ±1%
Vibration Effects (1.5g - 100Hz): ≤ 1%
Linear relationship between travel and signal
Compatible with φ4, φ6 servo slide valves
Optimal performance with stable actuator loads

Construction & Materials

• Housing: Glutamic acid treated with electrostatic powder coating

• Cover: Polycarbonate

• Internal Components: Stainless steel and aluminum alloy

• All materials feature corrosion-resistant properties and surface treatments

Connection Interfaces

Interface Type	Specification
Electrical Input	G1/2 or M20×1.5
Cable Compatibility	φ5-φ10
Air Pipe Interface	ZG 1/4"
Weight	Approximately 2.3 kg
