ZWJ Monitor Shaft Axial Displacement Monitor Hydraulic Generator Operat 0.5Hz ~ 250Hz

Brand Name:	Hontai
Model Number:	ZWJ
MOQ:	1
Price:	contact
Payment Terms:	T/T
Supply Ability:	500PCS / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Carton box

Supply Ability:

500PCS / month

Highlight:

digital rpm indicator

digital panel indicator

Product Description

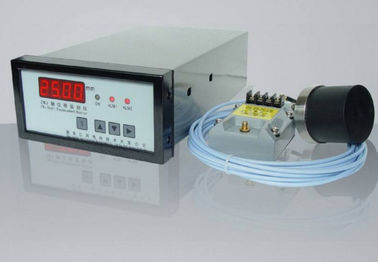

Intelligent Shaft Displacement Monitoring Device Monitor Shaft Axial Displacement Of Hydraulic Generator Operat

Overview

Intelligent shaft displacement monitor spindle axial displacement monitoring instrument of a unit structure. Monitor with microcontroller as the core processor, the eddy current displacement sensor configuration, non-contact preamplifier, monitor the shaft axial displacement of hydraulic generator operation process.

Technical parameters

- input signal: a signal of eddy current sensor;
In the measuring range: 0 ~ 20.00mm (or user);
- measurement accuracy: + 0.01mm;
- sensitivity: 5V/mm (or 2.5V/mm);
- frequency response: 0.5Hz ~ 250Hz;
- display: 8 digital tube display;
- supply sensor: DC + 12V;
- analog signal output: DC4 ~ 20mA (load resistance is less than or equal to 525V);
- output alarm signal: contact form: normally open contact capacity: AC220V 5A/ DC24V 5A
- alarm settings: two alarm output (range arbitrarily set);
- instrument power supply; AC220V + 10% 50Hz;
- Power: 10W;
In the use of the environment: temperature 0 ~ 45 relative humidity is less than or equal to 90% DE
