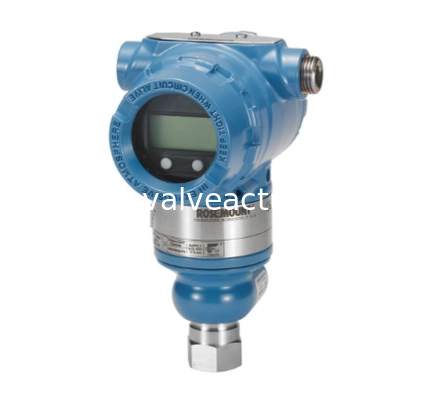

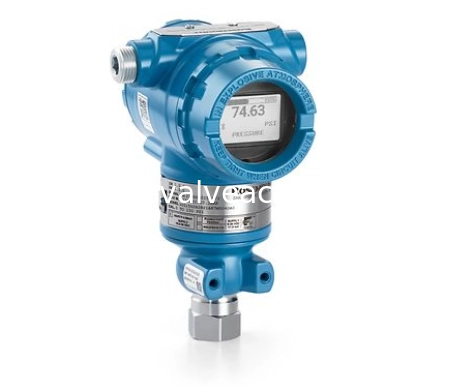

3051TG Rosemount 3051T In-Line Gage Pressure Transmitter 3051TG2A2B21A –14.7 to 150 psi

Detail Information

Place of Origin:

Singapore

Category:

Sensors & Switches

Packaging Details:

New original box

Highlight:

Product Description

3051TG Rosemount 3051T In-Line Gage Pressure Transmitter 3051TG2A2B21A –14.7 to 150 psi

Sensors & Switches

Product Description

Rosemount™ 3051T In-Line Pressure Transmitter Rosemount

3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement.

The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Capabilities

The Loop Integrity Diagnostic continuously monitors the electrical loop to detect changes that compromise the integrity of the transmitted 4-20 mA output signal (Option Code DA0).
LOI with straightforward menus and built-in configuration buttons (option code M4).
Safety certification (option code QT).

Specifications

Range down	Up to 150:1
Communication Protocol	4-20 mA HART, Wireless HART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range	Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics	Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approval	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications
