Bürkert Type 0121 Direct-Acting 2/2 Way & 3/2 Way Pivoted Armature Solenoid Valve

Name: Bürkert Type 0121 Direct-Acting 2/2 Way & 3/2 Way Pivoted Armature Solenoid Valve
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: Type 0121
Price: 210.00 USD
Availability: InStock

Brand Name:	Bürkert
Model Number:	Type 0121
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Valve Type:

Direct-Acting 2/2 Way & 3/2 Way

Body Material:

Stainless Steel (316L), PTFE, PVC

Coil Material:

Chemically Resistant Epoxy Resin

Nominal Diameter:

Up To DN 8

Protection Rating:

IP65/67

Operation Type:

Manual Operating Component

Packaging Details:

New original box

Product Description

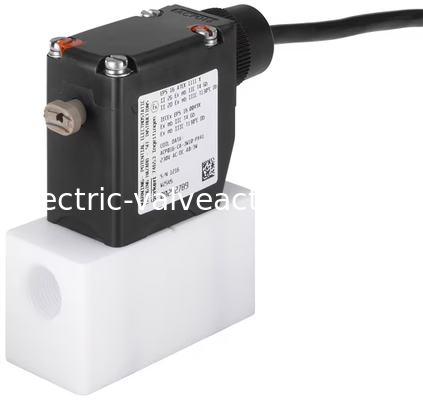

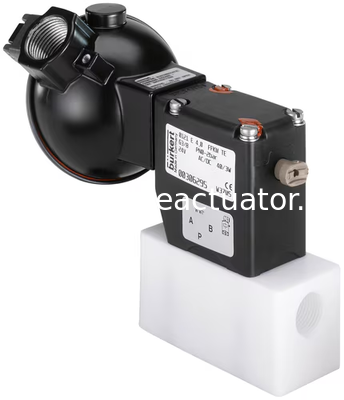

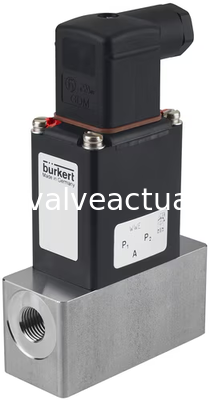

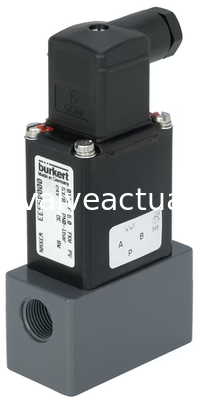

Bürkert Type 0121 Direct-Acting 2/2 Way & 3/2 Way Pivoted Armature Solenoid Valve

The Bürkert Type 0121 is a direct-acting, media-isolated pivot armature solenoid valve designed for sophisticated industrial automation systems. Available in both two-position two-way and two-position three-way configurations, this versatile valve provides reliable control of gaseous and liquid media.

Key Features

Direct-acting media isolation valve with nominal diameter up to DN 8
Maintenance-free rotating armature technology
Vibration-damping, modular coil system
Easy-to-use and robust manual operation components
Explosion-proof protection available
Low friction, ultra-fast response with stable cyclic switching performance
Operates stably from zero pressure without differential pressure requirements
Compact structure and lightweight design for confined equipment spaces

Technical Specifications

Valve Types: 2/2 Way & 3/2 Way

Body Materials: Stainless Steel (316L), PTFE, PVC

Coil Material: Chemically resistant epoxy resin

Protection Rating: IP65/67 (with appropriate housing)

Position Feedback: Binary or NAMUR signal

Applications

The Type 0121 is particularly suitable for corrosive acids and alkalis due to its media-isolated design. It serves as an ideal universal control component for pneumatic systems, analytical instruments, medical equipment, packaging machines, and various precision industrial fluid control applications. The 3/2-way version can be configured as a distributor or mixing valve to accommodate diverse circuit design and process requirements.

Energy Efficiency

All coils can be equipped with electronic power reduction or pulse functions to minimize energy consumption, making this valve both efficient and cost-effective for continuous operation.
