Wound Ring Type Low Voltage Protection Devices DC Contactor PR Current Transformers









PR Current Transformers
Current transformer for protection requires the current to run in the circuit that carres many times of rated current, it is better than the current transformer for measurement that is restricted by many conditions. When a current transformer provides the current for the protection relay, it must guarantee its characteristics ratio reaches some multiple of rated current value. This multiple may be5, 10.20 or more, this is so called accuracy limit factor. Therefore, when selecting the current transformer for protection, as for its accuracy and accuracy limit factor, user shall make the careful examination in the features of relay and ciruit conditions,hereinto, so-called circuit conditions include the relay load and conductor load.
Type wound ring type (measuring current transformers)

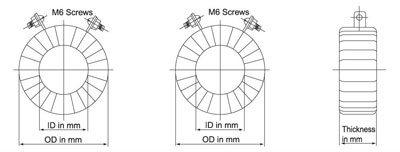

Outline Drawing
Wound Ring Type Low Voltage Protection Devices DC Contactor PR Current Transformers 0
Technical parameter
Model Class 10 10P10 10P15
RATIO ID OD VA 5 7.5 10 15 20 30 5 7.5 10 15 20 7.5 10 15 20
PR1 100/5 30 95 mm 50 60 75 100 130 - 85 100 - - - - - - -
120/5 30 95 50 60 70 95 120 - 80 105 - - - - - - -
150/5 30 95 40 50 60 80 110 - 65 90 110 - - - - - -
200/5 28 95 40 40 40 55 65 - 60 6 70 - - - - - -
PR2 150/5 40 100 mm 50 55 65 85 100 - 75 100 110 120 - - - - -
200/5 40 100 40 40 50 60 70 - 55 70 85 110 - - - - -
250/5 40 95 40 40 50 60 70 - 50 70 85 110 - 75 95 - -
300/5 40 95 35 40 40 60 65 85 50 60 70 95 - 70 85 105 -
PR3 200/5 45 95 mm 40 55 60 80 100 115 75 95 110 - - - - - -
250/5 45 95 40 50 60 70 85 110 60 75 90 115 - 85 110 - -
300/5 45 95 35 40 40 60 70 95 50 65 80 100 - 70 90 - -
400/5 45 95 35 40 40 60 60 85 50 55 65 85 - 65 80 95 -
PR4 400/5 58 100 mm 35 40 40 60 70 90 60 65 80 100 - 75 95 110 -
550/5 58 100 35 40 40 60 60 80 50 60 70 85 110 70 80 95 -
600/5 57 100 35 35 40 50 60 70 50 50 60 80 90 60 75 85 110
800/5 55 104 35 35 35 40 50 60 40 50 50 60 80 55 65 75 90
PR5 600/5 70 114 mm 35 35 40 50 50 70 50 55 60 80 95 70 80 90 110
800/5 70 114 35 35 35 40 40 55 40 40 50 60 70 50 60 70 85
1000/5 68 116 35 35 35 35 40 50 35 40 50 55 65 50 55 65 80
1200/5 67 117 35 35 35 35 35 40 35 40 40 50 60 40 50 55 65
PR6 800/5 85 125 mm 35 35 35 40 50 60 40 50 55 65 80 60 65 75 95
1000/5 83 127 35 35 40 40 40 60 40 40 50 60 75 50 60 70 85
1200/5 83 128 35 35 35 35 40 40 35 35 40 45 60 40 50 60 65
1600/5 82 130 35 35 35 35 35 40 35 35 35 40 50 40 50 50 65
PR7 1200/5 110 152 mm 35 35 35 35 40 50 40 40 50 45 65 50 60 65 80
1600/5 110 155 35 35 35 35 35 40 35 35 35 40 50 35 50 50 60
2000/5 108 158 30 30 30 30 30 30 35 35 35 40 40 35 40 50 50
2500/5 108 162 30 30 30 30 30 30 35 35 35 35 40 35 35 40 50
PR8 1600/5 120 165 mm 30 30 30 35 35 40 35 40 40 45 60 50 50 55 65
2000/5 120 165 30 30 30 35 35 40 35 35 40 40 50 40 40 50 55
2500/5 118 168 30 30 30 35 35 35 35 35 35 40 40 35 40 40 50
3000/5 116 170 30 30 30 35 35 35 35 35 35 40 40 35 40 40 50
PR9 2000/5 130 175 mm 30 30 30 35 35 40 35 35 40 40 50 40 50 50 60
2500/5 130 175 30 30 30 35 35 40 35 35 35 40 40 35 40 40 50
3000/5 128 178 30 30 30 35 35 35 35 35 35 40 40 35 40 40 50
3500/5 126 180 30 30 30 35 35 35 35 35 35 40 40 35 35 40 40
PR10 2500/5 140 185 mm 35 35 35 35 40 40 35 35 40 40 50 35 40 50 60
3000/5 140 185 35 35 35 35 35 40 35 35 35 40 40 35 40 40 50
3500/5 138 188 35 35 35 35 35 35 35 35 35 40 40 35 35 40 40
4000/5 136 190 35 35 35 35 35 35 35 35 35 40 40 35 35 40 40
