1.5KW 380V Ceramic Shaft Porcelain Electric Heater with High Thermal Efficiency for ESP Controller

Model Number:	FT9G
MOQ:	1
Payment Terms:	TT
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

1KW--2KW

Packaging Details:

wooden box

Supply Ability:

500

Highlight:

lectronics stability control

porcelain electric heater

Product Description

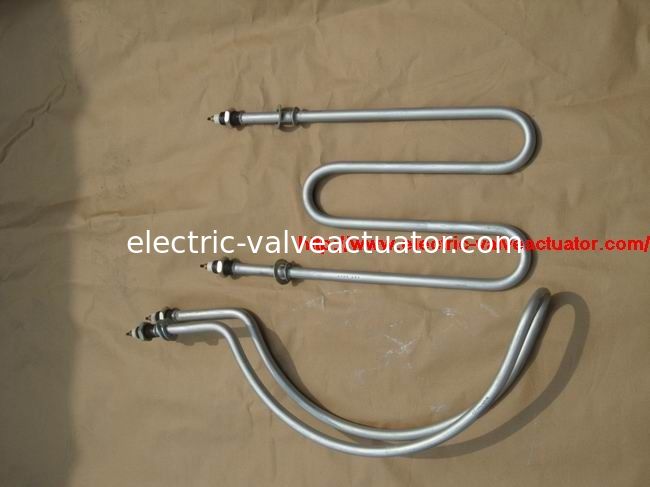

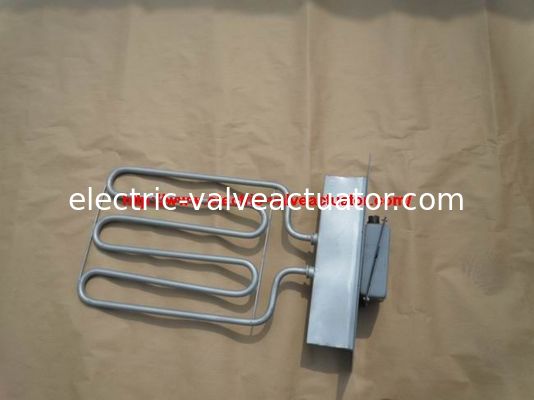

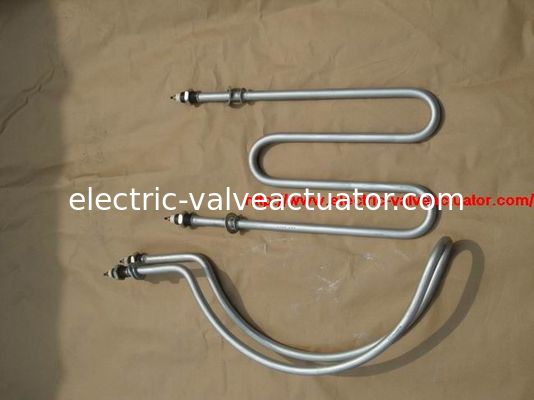

Ceramic Shaft Porcelain Electric Heater

ST9G-1.5KW / 380V, ST11G-1.5KW / 380V Cathode Ceramic Shaft Porcelain Electric Heater For ESP Controller

Product Overview

Ash bucket electric heater is used inside ESP ash hopper to prevent ash condensation and hardening, ensuring smooth ash removal. The working principle involves placing metal wire resistance into a metal pipe, with the gap tightly filled with magnesium oxide for excellent thermal conductivity and dielectric properties.

This versatile heater can be bent into any desired form and installed in air channels for air heating, immersed in water or other liquids for liquid heating, or placed directly on solid metal for metal heating. It features simple structure, high thermal efficiency, excellent safety, durability, and lightweight design, currently used across various industrial equipment in compliance with TB/T2379-93 technical requirements.

Product Variants

Cathode ceramic shaft electric heater
Ash bucket electric heater
Insulator compartment electric heater
Porcelain electric heater
Porcelain insulator electric heater
Casing tube electric heater

Available Models: T4.1.9B, ST9G-1KW/220V, ST9G-1.5KW/220V, ST11G-1.5KW/220V, ST9G-1KW/380V, ST9G-1.5KW/380V, ST11G-1.5KW/380V, ST9G-1KW/415V, ST9G-1.5KW/415V, ST11G-1.5KW/220V, ST11G-1.5KW/380V, ST11G-1.5KW/415V

Technical Specifications

Parameter	Specification
Model	FT11G/ST11G
Working Voltage	380V
Power	0.5KW-10KW
Insulation Resistance	10M
Dielectric Strength	1000V
Unit	KW
Outline Dimensions	500X720X16
Temperature Range	0-450
Use	Heater
Weight	10KG
Maximum Heating Weight	8KG
Continuous Service Life	100000H

Product Advantages

The ceramic shaft porcelain electric heater is a high-efficiency, safe and durable electric heating component widely adopted in industrial heating and thermal treatment systems. Featuring an integrated ceramic structural design, this heating device combines excellent thermal conductivity and superior insulation performance, solving common defects of traditional heating elements such as poor insulation, uneven heating and easy aging.

Adopting high-purity industrial porcelain materials and sophisticated integral forming technology, the heater boasts outstanding thermal stability and structural robustness. The specialized ceramic shaft structure delivers uniform heat distribution during operation, avoiding local overheating and ensuring consistent thermal output across the working surface. Such optimized heating performance greatly improves heating efficiency and effectively reduces energy waste.

This electric heater has excellent insulation and anti-leakage properties, ensuring high safety coefficients for long-term continuous operation. The premium ceramic material resists high-temperature oxidation, corrosion and thermal shock, maintaining intact structural performance and stable heating output even in harsh industrial environments. It avoids short circuit, electric leakage and heating attenuation risks common in ordinary heating parts.

With a streamlined and compact structure, the ceramic shaft heater features easy installation, flexible assembly and low maintenance costs. It adapts to diverse industrial supporting equipment and environmental heating systems, fully complying with industrial safety and electrical standards. Trusted for its stable performance, high safety and efficient heating capacity, it has become a preferred heating solution for mechanical equipment, industrial drying and thermal processing industries.
